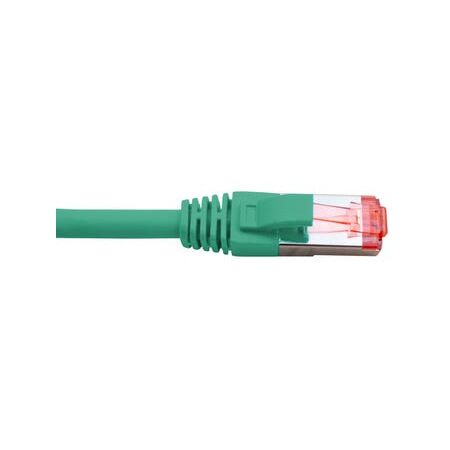

Cat6A FTP Patch Lead RJ45 1m 500MHz 26AWG LSZH Green Cabac
Cabac Cat6A FTP patch lead features 1m length, 500MHz, 26AWG. Ideal for structured cabling and network installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Category: CAT6a (Category 6 Augmented)
- Frequency: Up to 500 MHz
- Conductor: 26 AWG copper
- Shielding: Double shielded with overall braid and individual foil shielding on pairs (S-FTP)
- Jacket Material: Low Smoke Zero Halogen (LSZH)
- Standards Compliance: ACMA A-tick certified N10227, ETL conformant to TIA/EIA 568-C, ISO/IEC 11801, EN 50288, RoHS compliant
- PoE Support: Class 8, max 72W
- Connector Type: RJ45 to RJ45
- Colour: Green
- Length: 1 metre
- Dimensions (H x L x W): 5mm x 1000mm x 5mm
- Weight: 0.1 kg
Key Features
- Individually tested to ensure CAT6a component level compliance
- Double shielded with individual shielding on inner pairs (PiMF)
- Telstra network fully compliant
- Fully moulded strain relief boots for durability
- Backward-compatible with CAT5, CAT5e, and CAT6 standards
- 26 AWG copper conductors
- LSZH (Low Smoke Zero Halogen) jacket material for safety
- Supports frequencies up to 500 MHz
- PoE Class 8 support up to 72W
Professional Installation Requirements
- Professional installation by qualified network technicians is recommended to ensure optimal performance and compliance with network standards.
Applications
- High-speed data networking
- Telecommunications infrastructure
- Enterprise and commercial network installations
- PoE (Power over Ethernet) applications up to Class 8 (72W)
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic smoke and halogen emissions in case of fire
- RoHS compliant, ensuring restriction of hazardous substances
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac 1 Metre 4 Pair LSZH Shielded RJ45 - RJ45 Cat6A Green Patch Lead is available now for immediate purchase. Ideal for high-speed data networking and PoE applications in commercial and enterprise environments.
