Trade Discount 25%

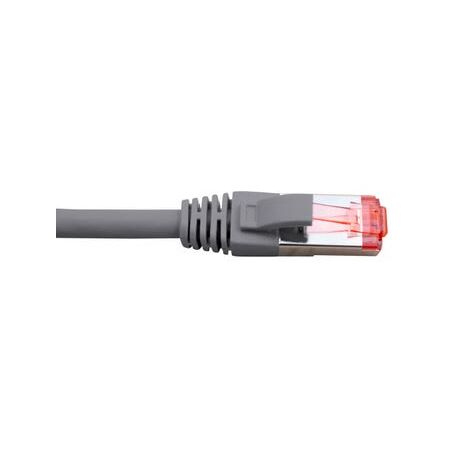

Cat6A FTP Patch Lead RJ45 5m 500MHz 26AWG LSZH Grey Cabac
Cabac Cat6A FTP patch lead features 5m length, 500MHz, 26AWG. Ideal for structured cabling and network installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Category: CAT6A (Category 6 Augmented)
- Frequency: Up to 500 MHz
- Conductor: 26AWG Copper
- Shielding: S-FTP (Shielded Foiled Twisted Pair) with individual foil shielding and overall braided shield
- Compliance: RCM/A-Tick (S008), TIA-568-C.2 Cat6A, RoHS
- Power over Ethernet (PoE) Class 8 support, max 72W
- Backward compatible with CAT5, CAT5e, and CAT6
- Dimensions (H x L x W): 6mm x 5000mm x 6mm
- Weight: 0.1 kg
Key Features
- Category 6a (CAT6 Augmented) supports frequencies up to 500MHz
- S-FTP construction with double shielding: individual foil shielded twisted pairs and overall braided wire shield
- 26AWG copper conductors for reliable performance
- Shielding connected to metal frame integral to RJ connector
- Backward-compatible with CAT5, CAT5e, and CAT6
- PoE Class 8 support with max 72W power
Professional Installation Requirements
- Installation by a qualified technician or network professional is recommended to ensure optimal performance and compliance with standards.
Applications
- High-speed data transmission in hospitals
- Telecommunications operations infrastructure
- Radio and television broadcast applications
- X-ray theatres
- Near mains power transmission lines, switch yards, and substations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS compliant, ensuring restriction of hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty policy for details.
Available Now
The Cabac 5 Metre 4 Pair LSZH Shielded RJ45 - RJ45 Cat6A Grey Patch Lead is available now for immediate purchase. Ideal for high-speed data communication in environments with high electrical noise.
