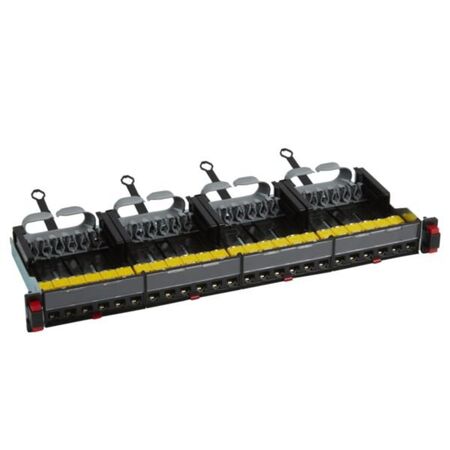

Cat6A Patch Panel 1U Black Legrand
The 19 Inch Patch Panel with 24 RJ45 Category 6A UTP connectors is designed for efficient network management in data centers and telecommunications cabinets. Featuri
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of connectors: 24 RJ45 8(8)
- Category: 6A (IEC)
- Connection type: Insulation displacement connector
- Mounting: 19 inch (482.6 mm), 1U height
- Colour: Black (RAL 9017)
- Degree of impact strength: IK03
- Operating temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Cable support: Zigzag cable guide
- Terminal marking indication: Yes
- Prewired: No
- Suitable for flexible or rigid cables
- Dimensions (H x L x W): 43.85mm x 321.7mm x 482.5mm
- Weight: 2.5 kg
Key Features
- Equipped with 24 RJ45 Category 6A UTP quick-connect connectors
- New generation quick-fix mechanism for screwless mounting on cabinet uprights
- Four extractable cassettes each containing 6 connectors with 568 A/B marking
- Rear cable guide to hold cables securely
- Front-panel and fast-snap accessibility for ease of installation and maintenance
- Automatic cassette removal via push button
- Supports move-add-change management for daily user maintenance
- Colour-coded labels included (white, yellow, blue, red)
Professional Installation Requirements
- Installation by a qualified IT network technician or electrician is recommended to ensure proper mounting and cable management.
Applications
- Data centers and server rooms
- Telecommunications cabinets
- Structured cabling systems for commercial buildings
- IT network infrastructure installations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Screwless mounting reduces installation time and waste
- Durable design extends product lifecycle, reducing replacement frequency
Warranty Information
Standard Legrand warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand 19 Inch Patch Panel with 24 RJ45 Category 6A UTP connectors is available for immediate purchase, ideal for IT network infrastructure and telecommunications applications.
FAQ
Q: What mounting system does the Legrand 33770 patch panel use?
A: The 33770 uses a new generation quick-fix screwless mounting mechanism on cabinet uprights, reducing installation time and waste. Front-panel and fast-snap accessibility via push button also supports move-add-change management for daily user maintenance.
Q: What cabling standards and applications is the Legrand 33770 suited for?
A: The 33770 supports Category 6A UTP cabling with 568 A/B marking and is suitable for flexible or rigid cables. It is designed for IT network infrastructure installations, telecommunications cabinets, data centres, server rooms, and structured cabling systems in commercial buildings. Complies with AS/NZS 60950 — Safety of IT and Communication Equipment.
Cat6A cabling running back to this panel can be sourced as a Cat data cable Cat6A 305m roll for full structured cabling runs.
For shielded panel alternatives in EMI-sensitive rack environments, a 24-port unloaded shielded patch panel provides Cat5e, Cat6, and Cat6A compatibility with electromagnetic interference protection.
A Cat6A RJ45 STP keystone socket can be used to extend Cat6A termination points beyond the patch panel to wall outlets or floor boxes.
