Trade Discount 25%

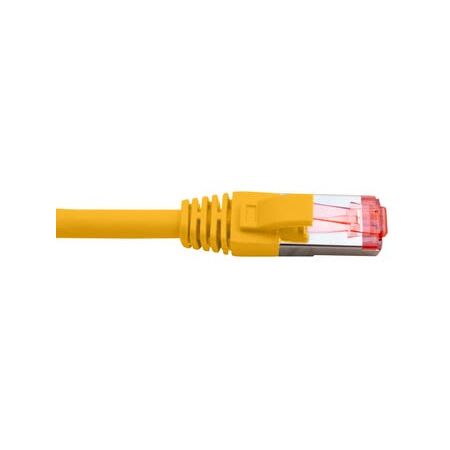

Cat6A RJ45 Patch Lead FTP 4Pair 500MHz LSZH 5m Yellow Cabac
Cabac Cat6A RJ45 patch lead features 5m length, FTP shielded construction, LSZH jacket. Ideal for structured data cabling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Category: CAT6A (Augmented)
- Frequency: Up to 500 MHz
- Conductor: 26AWG Copper
- Shielding: S-FTP - individual foil shielded twisted pairs plus overall braided shield
- Connector: Shielded RJ45 with metal frame
- Compliance: RCM/A-Tick (S008), TIA-568-C.2 Cat6A, RoHS
- Backward Compatibility: CAT5, CAT5e, CAT6
- PoE Support: Class 8, max 72W
- Cable Jacket: LSZH (Low Smoke Zero Halogen)
- Dimensions (H x L x W): 6mm x 5000mm x 6mm
- Weight: 0.1 kg
Key Features
- Category 6a (CAT6 Augmented) supports frequencies up to 500MHz
- S-FTP construction with double shielding: individual twisted pairs foil shielded and overall braided wire shield
- 26AWG copper conductors
- Shielding connected to metal frame integral to RJ45 connector
- Backward-compatible with CAT5, CAT5e, and CAT6
- Supports PoE Class 8 with max 72W power
Professional Installation Requirements
- Installation by a qualified technician or network professional is recommended to ensure optimal performance and compliance with standards.
Applications
- High-speed data transmission in hospitals
- Telecommunications operations infrastructure
- Radio and television broadcast applications
- X-ray theatres
- Near mains power transmission lines, switch yards, and substations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS compliant, ensuring restriction of hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms.
Available Now
The Cabac 5 Metre 4 Pair LSZH Shielded RJ45 - RJ45 Cat6A Yellow Patch Lead is available now for immediate purchase. Ideal for high-speed data networking in sensitive and high-noise environments.
