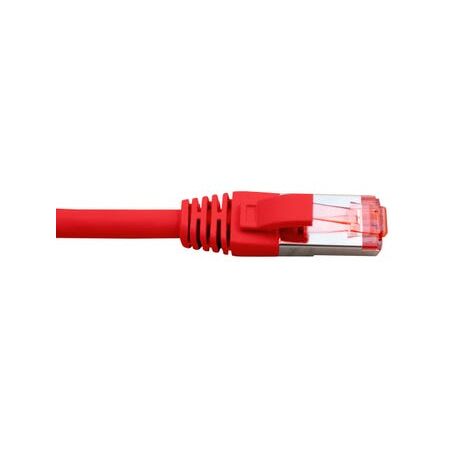

Cat6A RJ45 Patch Lead FTP 4Pair LSZH PoE 72W 5m Red Cabac
Cabac Cat6A RJ45 patch lead features 5m length, FTP shielded construction, LSZH jacket. Ideal for structured data cabling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Category: CAT6a (Category 6 Augmented) supporting frequencies up to 500 MHz
- Conductor: 26 AWG copper
- Shielding: Double shielded with overall braid and individual foil shielding on pairs (S-FTP)
- Jacket Material: Low Smoke Zero Halogen (LSZH)
- Compliance: ACMA A-tick certified N10227, ETL conformant to TIA/EIA 568-C, ISO/IEC 11801, EN 50288, RoHS compliant
- PoE Class 8 support up to 72W
- Dimensions (H x L x W): 5mm x 5000mm x 5mm
- Weight: 0.1 kg
Key Features
- Individually tested to ensure CAT6a component level compliance
- Double shielded with inner pairs individually foil shielded (S-FTP construction)
- Fully moulded strain relief boots for durability
- Backward-compatible with CAT5, CAT5e, and CAT6 standards
- 26 AWG copper conductors for reliable signal transmission
- LSZH (Low Smoke Zero Halogen) jacket material for safety
- Telstra network fully compliant
Professional Installation Requirements
- Installation by qualified network technicians or electricians is recommended to ensure compliance with standards and optimal performance.
Applications
- High-speed data networking
- Telecommunications
- Data centers
- Office and commercial network installations
- PoE (Power over Ethernet) applications up to Class 8 (72W)
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic smoke and halogen emissions in case of fire
- RoHS compliant, ensuring restriction of hazardous substances
Warranty Information
Warranty coverage as per Cabac standard terms and conditions; typically includes manufacturing defects.
Available Now
The Cabac 5 Metre 4 Pair LSZH Shielded RJ45 - RJ45 Cat6A Red Patch Lead is available now for immediate purchase. Ideal for high-speed networking and data communication applications.
