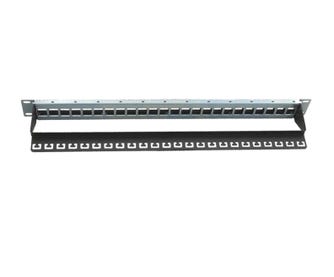

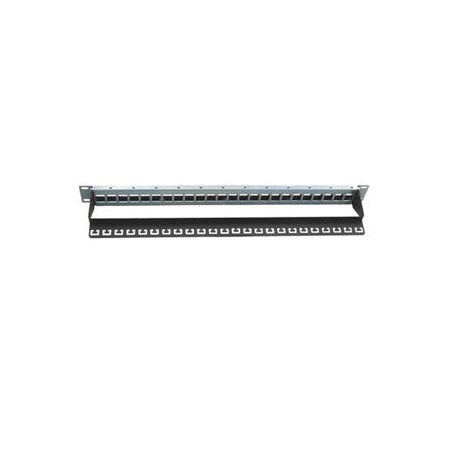

Cat6A Shielded Patch Panel | 24 Ports | Loaded Design | Copper by Cabac
This Cat6A shielded patch panel features 24 ports and a loaded design—ideal for high-speed networking setups. Built for professional installations, it ensures reliable connectivity and optimal performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cat6A Shielded Patch Panel | 24 Ports | Loaded Design | Copper by MSS
Brand: Cabac
SKU: MSSPP24C6AS
Alternatively Known As: Cat6A Shielded Patch Panel, 24 Port Cat6A Patch Panel, Shielded Network Patch Panel, 10G Copper Patch Panel
Technical Specifications
- Category 6A Shielded Copper Patch Panel
- Supports 10 Gigabit Ethernet networks
- Compliant with ANSI/TIA 568.2-D and AS/NZS 11801.1.2019 standards
- PoE Compliance: DELTA PoE plus 30W IEC60512-99-001 verified, IEC60512-99-002 PoE type III 60W and IV 100W capability
- Connector Standards: IEC 60603-7, EN 60603-7-4, FCC Part 68 subpart F, TIA 570-B, UL 1863
- Power over HDBaseT (PoHDBaseT) support up to 100W
- Dimensions (H x L x W): 44mm x 150mm x 482mm
- Weight: 1.5 kg
Key Features
- Designed to support Cat 6A Link and Channel performance
- Outstanding system performance
- Available with and without RJ45 connectors
- Rear cable manager included
- Fully shielded jacks in cast metal
- Termination by tool (single wire or all 8 wires at once) or tool-less
- Both 568A and 568B wiring code labels
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure proper termination and shielding for optimal performance.
Applications
- Generic cabling systems including 10Base-T, 100Base-T, 1000Base-T, ATM 10G, Token Ring
- Power over Ethernet (PoE) applications including DELTA PoE plus 30W, PoE type III 60W and IV 100W
- Power over HDBaseT (PoHDBaseT) up to 100W
Standards & Compliance
- AS/NZS 11801.1.2019
Environmental Benefits
- Supports energy-efficient network infrastructure by enabling high-speed data transmission with minimal signal loss
- Durable shielded design reduces electromagnetic interference, improving network reliability and reducing electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty terms.
Available Now
The MSS Copper 24 Port Loaded Cat6A Shielded Patch Panel by Cabac is available now for immediate purchase. Ideal for high-performance data communication networks requiring robust and reliable connectivity.
