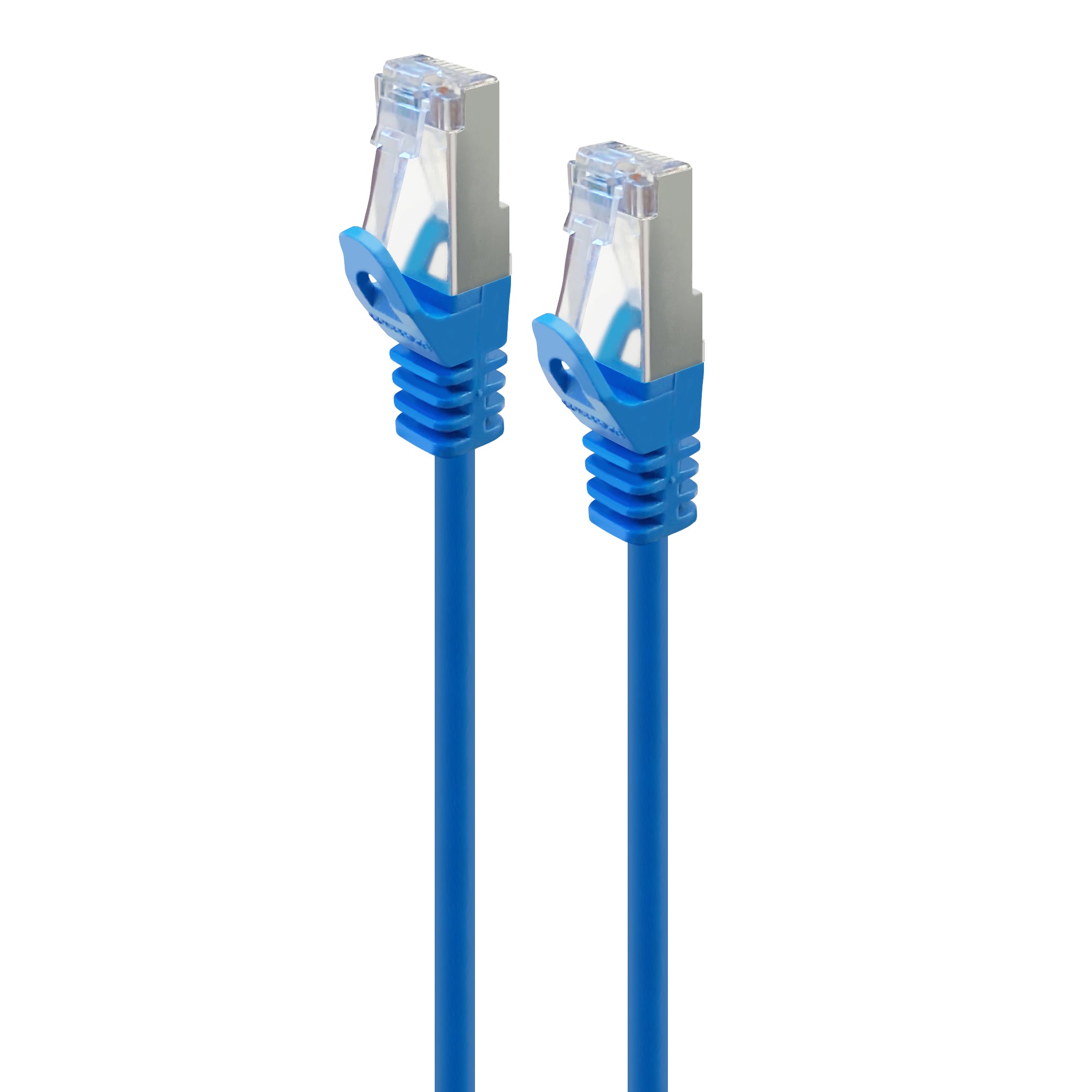

CAT6A Slim S/FTP Network Cable | 10G Ethernet Support | LSZH Jacket | 0.3m | by SERVEREDGE
The CAT6A Slim S/FTP Network Cable is designed for high-speed networking, supporting 10GBASE-T Ethernet and 1000BASE-TX Fast Ethernet. With a low smoke zero halogen (LSZH) jacket and superior shielding, this cable ensures reliable performance and safety in demanding environments. Ideal for professional installations, it features gold-plated RJ45 connectors and is perfect for general networking applications requiring enhanced protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CAT6A Slim S/FTP Network Cable | 10G Ethernet Support | LSZH Jacket | 0.3m | by SERVEREDGE
Brand: SERVEREDGE
SKU: C6AS-0.3-BU-SHF
Alternatively Known As: CAT6A Network Cable, CAT6A SFTP Cable, 10G Ethernet Cable, Slim CAT6A Patch Cable
Technical Specifications
- Cable Type: Category 6A SFTP (Shielded Foiled Twisted Pair)
- Conductor Size: 30 AWG
- Connector: Gold plated 8x8 RJ45 plugs
- Shielding: Individual aluminium foil for each twisted pair plus overall copper braided shield
- Length: 0.3 meters
- Jacket Material: LSZH (Low Smoke Zero Halogen)
- Standards Compliance: TIA/EIA-568C.2.1 Category 6a, IEC 802.3an, ISO/IEC 11801
- Performance: Supports 10GBASE-T Ethernet up to 100 meters
- Dimensions (H x L x W): 5mm x 300mm x 5mm
- Weight: 0.02 kg
Key Features
- Supports up to 10G LANs including 10GBASE-T Ethernet and 1000BASE-TX Fast Ethernet
- Each twisted pair individually wrapped in aluminium foil for enhanced shielding
- Overall copper braided shield for superior protection
- LSZH (Low Smoke Zero Halogen) jacket for safety
- Category 6A SFTP cable wired straight through
- 30 AWG, gold plated 8x8 (RJ45) plugs
- Snag-free strain relief molded boot for secure connection
- Suppresses Alien Near End Cross Talk (ANEXT) for superior 10GbE performance up to 100 meters
- A-Tick compliant as per ACMA requirements
- ETL verified to TIA/EIA-568C.2.1 Category 6a
- Compliant to IEC 802.3an standards and ISO/IEC 11801
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure optimal performance and compliance with standards.
Applications
- High-speed 10G LANs including 10GBASE-T Ethernet
- 1000BASE-TX Fast Ethernet networks
- General networking requiring superior shielding and performance
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic smoke emissions in case of fire, enhancing safety and environmental protection
Warranty Information
Standard manufacturer warranty applies; please refer to SERVEREDGE warranty policy for details.
Available Now
The Serveredge 0.3m Blue CAT6A Slim S/FTP Network Cable is available for immediate purchase, ideal for high-speed networking applications requiring reliable and shielded cabling.
