Trade Discount 18%

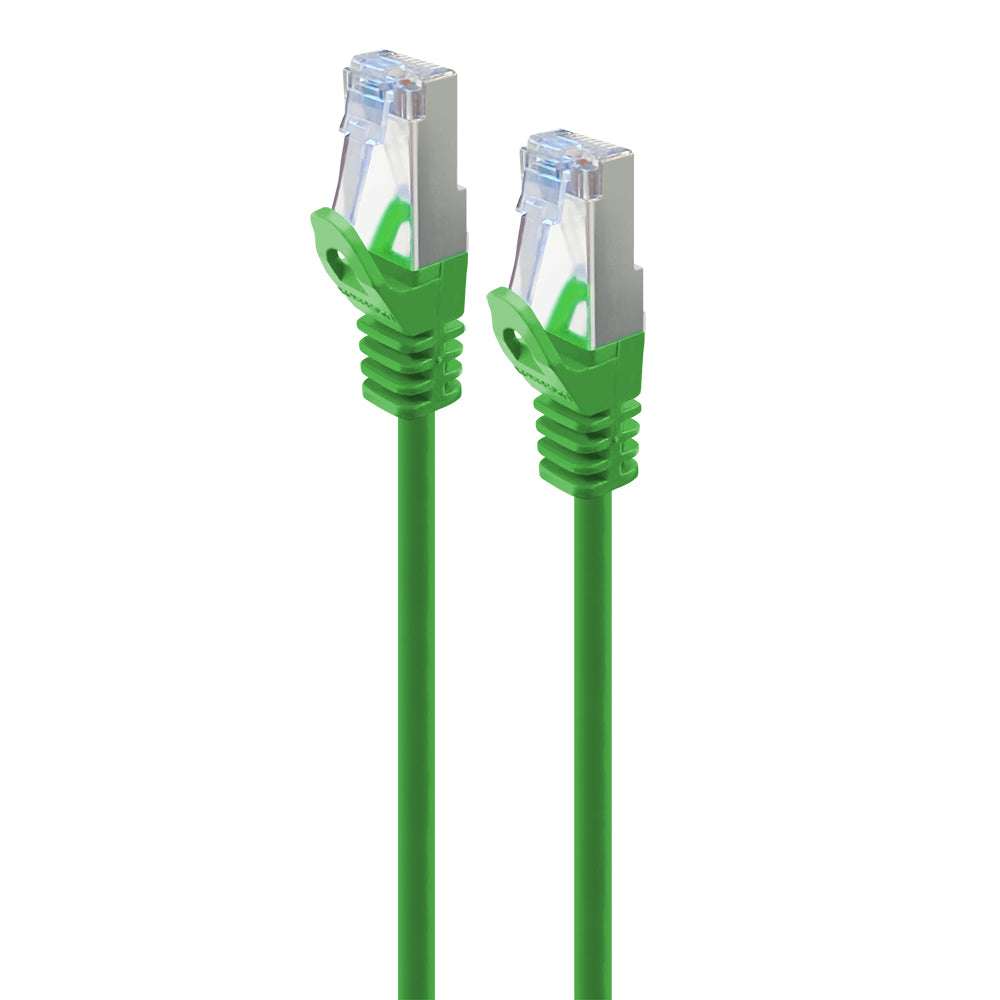

CAT6A Slim S/FTP Network Cable | 10G Support | Gold Plated RJ45 | LSZH Jacket | @Each by SERVEREDGE
The CAT6A Slim S/FTP Network Cable is designed for high-speed data transmission, supporting up to 10G Ethernet networks. With gold plated RJ45 connectors and an LSZH jacket, this cable ensures superior performance and safety in any installation. Ideal for professional networking setups, it features enhanced shielding to suppress interference, making it perfect for both home and commercial use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CAT6A Slim S/FTP Network Cable | 10G Support | Gold Plated RJ45 | LSZH Jacket | @Each by SERVEREDGE
Brand: SERVEREDGE
SKU: C6AS-01-GN-SHF
Alternatively Known As: CAT6A Network Cable, CAT6A SFTP Cable, 10G Ethernet Cable, Shielded Ethernet Cable, Slim CAT6A Cable
Technical Specifications
- Cable Type: Category 6A SFTP (Shielded Foiled Twisted Pair)
- Conductor Size: 30 AWG
- Connector: Gold plated 8x8 RJ45 plugs
- Shielding: Individual aluminium foil for each twisted pair plus overall copper braided shield
- Length: 1 meter
- Compliance: A-Tick, ETL verified to TIA/EIA-568C.2.1, IEC 802.3an, ISO/IEC 11801
- Jacket: LSZH (Low Smoke Zero Halogen)
- Dimensions (H x L x W): 5mm x 1000mm x 5mm
- Weight: 0.02 kg
Key Features
- Supports up to 10G LANS including 10GBASE-T Ethernet and 1000BASE-TX Fast Ethernet
- Each twisted pair individually wrapped in aluminium foil for enhanced shielding
- Overall copper braided shield for superior protection
- LSZH (Low Smoke Zero Halogen) jacket for safety
- Category 6A SFTP cable wired straight through
- 30 AWG, gold plated 8x8 (RJ45) plugs
- Snag-free strain relief molded boot for secure connection
- Suppresses Alien Near End Cross Talk (ANEXT) for superior 10GbE performance up to 100 meters
- A-Tick compliant as per ACMA requirements
- ETL verified to TIA/EIA-568C.2.1 Category 6a standards
- Compliant with IEC 802.3an and ISO/IEC 11801 standards
Professional Installation Requirements
- Professional installation by a qualified network technician or electrician is recommended to ensure optimal performance and compliance with standards.
Applications
- High-speed data transmission for 10G LANS
- 10GBASE-T Ethernet networks
- 1000BASE-TX Fast Ethernet
- General networking requiring shielded twisted pair cables
Standards & Compliance
- AS/NZS 3080 – Telecommunications installations – Generic cabling for customer premises
Environmental Benefits
- LSZH jacket reduces toxic smoke emissions in case of fire, enhancing safety and environmental protection
Warranty Information
Standard manufacturer warranty applies; please refer to SERVEREDGE warranty policy for details.
Available Now
The Serveredge 01m Green CAT6A Slim S/FTP Network Cable is available now for immediate purchase. Ideal for high-speed network installations requiring reliable and shielded cabling.
