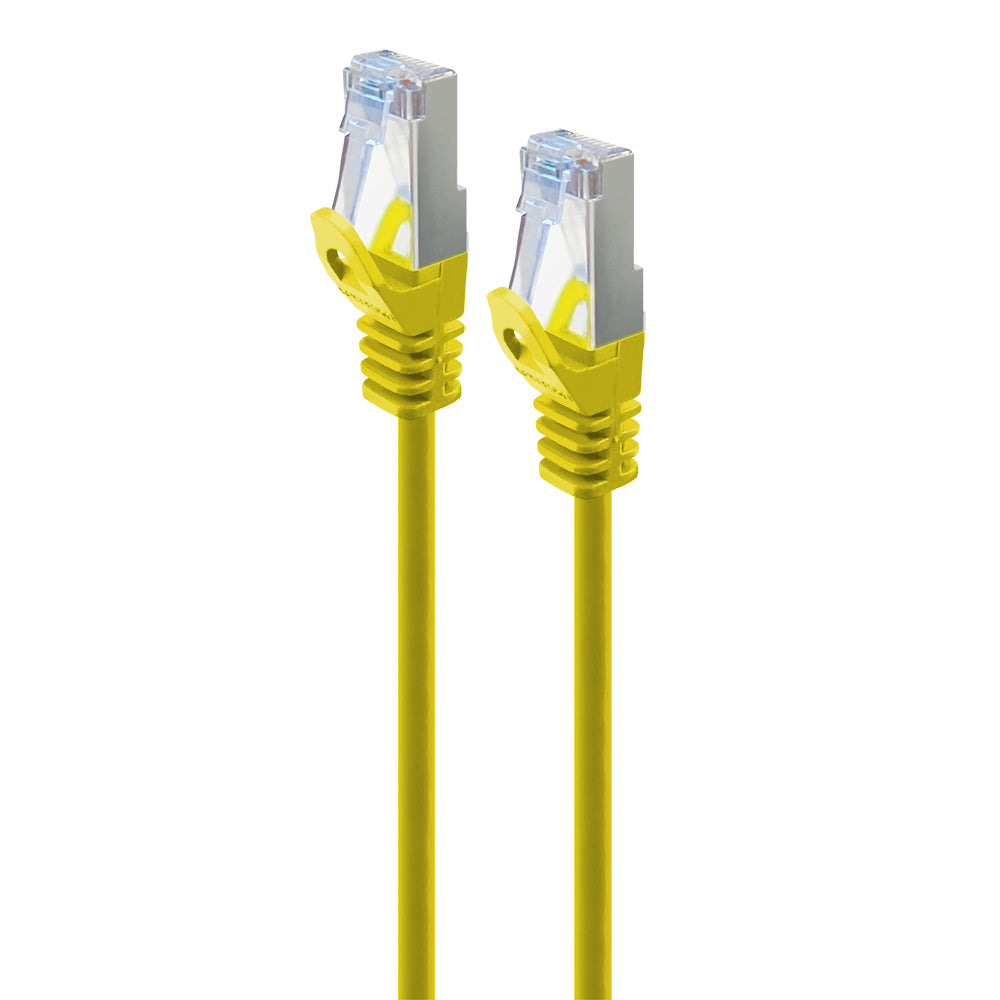

CAT6A Slim S/FTP Network Cable | 10G Performance | Gold Plated RJ45 Plugs | LSZH Jacket | by SERVEREDGE
The CAT6A Slim S/FTP Network Cable delivers exceptional 10G performance, making it perfect for high-speed data transmission in 10GBASE-T Ethernet networks. With individually wrapped aluminum foil for each twisted pair and an overall copper braided shield, this cable ensures superior shielding and reduced crosstalk. Ideal for data centers and professional installations, it features a low smoke zero halogen (LSZH) jacket for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CAT6A Slim S/FTP Network Cable | 10G Performance | Gold Plated RJ45 Plugs | LSZH Jacket | by SERVEREDGE
Brand: SERVEREDGE
SKU: C6AS-01-YL-SHF
Alternatively Known As: CAT6A Network Cable, CAT6A SFTP Cable, 10G Ethernet Cable, Slim CAT6A Cable, Shielded Network Cable
Technical Specifications
- Supports up to 10G LANS including 10GBASE-T Ethernet and 1000BASE-TX Fast Ethernet
- Each twisted pair individually wrapped in aluminium foil
- Overall copper braided shield
- 30 AWG conductors
- Gold plated 8x8 RJ45 plugs
- Complies with IEC 802.3an and ISO/IEC 11801 standards
- ETL verified to TIA/EIA-568C.2.1 Category 6a
- A-Tick compliant as per ACMA requirements
- Dimensions (H x L x W): 5mm x 1000mm x 5mm
- Weight: 0.05 kg
Key Features
- Individually wrapped aluminium foil for each twisted pair
- Overall copper braided shielding
- LSZH (Low Smoke Zero Halogen) jacket for safety
- Category 6A SFTP cable wired straight through
- 30 AWG, gold plated 8x8 (RJ45) plugs
- Snag-free strain relief molded boot for secure connection
- Suppresses Alien Near End Cross Talk (ANEXT)
- Delivers superior 10GbE performance up to 100 meters
- A-Tick compliant as per ACMA requirements
- ETL verified to TIA/EIA-568C.2.1 Category 6a
- Compliant to IEC 802.3an standards and ISO/IEC 11801
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure optimal performance and compliance with standards.
Applications
- High-speed data transmission for 10G LANS
- 10GBASE-T Ethernet networks
- 1000BASE-TX Fast Ethernet
- General networking requiring superior shielding and performance
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic smoke emissions in case of fire, enhancing safety and environmental protection
Warranty Information
Standard manufacturer warranty applies; typically 1 year against defects.
Available Now
The Serveredge 01m Yellow CAT6A Slim S/FTP Network Cable is available for immediate purchase, ideal for high-speed networking and data center applications.
