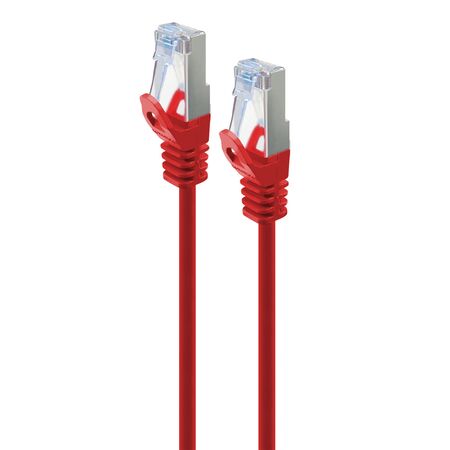

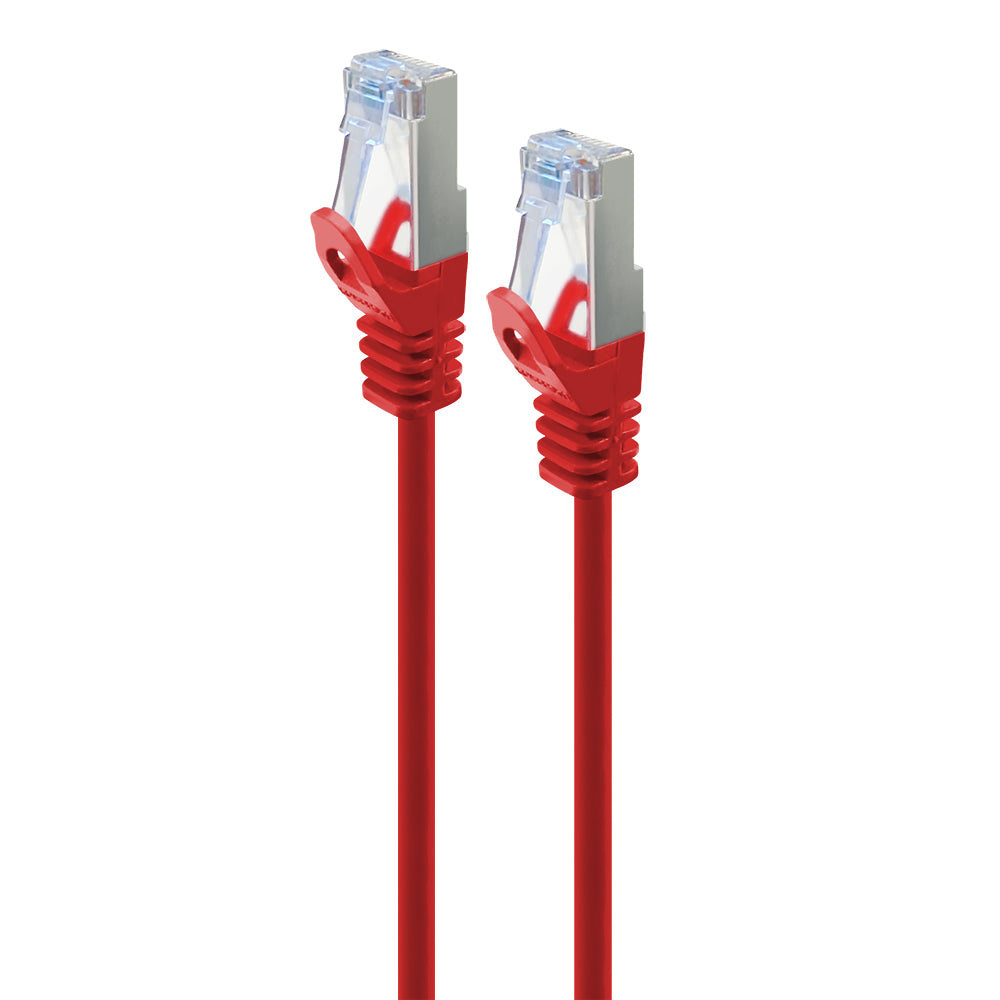

CAT6A Slim S/FTP Network Cable | 10G Support | Red Color | 30 AWG | by SERVEREDGE
The CAT6A Slim S/FTP Network Cable is designed for high-speed 10G LANs, supporting 10GBASE-T Ethernet and 1000BASE-TX Fast Ethernet. With individually wrapped aluminum foil shielding and a snag-free molded boot, this cable ensures superior performance and reliability. Ideal for professional networking setups, it features a low smoke zero halogen jacket for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CAT6A Slim S/FTP Network Cable | 10G Support | Red Color | 30 AWG | by SERVEREDGE
Brand: SERVEREDGE
SKU: C6AS-05-RD-SHF
Alternatively Known As: CAT6A Network Cable, CAT6A SFTP Cable, 10G Ethernet Cable, Slim CAT6A Cable, Red Network Cable
Technical Specifications
- Supports up to 10G LANS including 10GBASE-T Ethernet and 1000BASE-TX Fast Ethernet
- Each twisted pair individually wrapped in aluminium foil
- Overall copper braided shielded
- 30 AWG conductors
- Gold plated 8x8 RJ45 plugs
- Snag-free strain relief molded boot
- Suppresses Alien Near End Cross Talk (ANEXT)
- A-Tick compliant as per ACMA requirements
- ETL verified to TIA/EIA-568C.2.1 Category 6a
- Compliant to IEC 802.3an and ISO/IEC 11801
- Dimensions (H x L x W): 5mm x 5000mm x 5mm
- Weight: 0.05 kg
Key Features
- Individually wrapped aluminium foil shielding for each twisted pair
- Overall copper braided shielding for enhanced protection
- LSZH (Low Smoke Zero Halogen) jacket for safety
- Category 6A SFTP cable wired straight through
- 30 AWG, gold plated 8x8 (RJ45) plugs
- Snag-free strain relief molded boot for secure connection
- Suppresses Alien Near End Cross Talk (ANEXT)
- A-Tick compliant as per ACMA requirements
- ETL verified to TIA/EIA-568C.2.1 Category 6a
- Compliant with IEC 802.3an and ISO/IEC 11801 standards
Professional Installation Requirements
- Professional installation by a qualified network technician or electrician is recommended to ensure optimal performance and compliance.
Applications
- High-speed 10G LANs including 10GBASE-T Ethernet
- 1000BASE-TX Fast Ethernet networks
- General networking requiring superior 10GbE performance up to 100 meters
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic smoke emissions in case of fire, enhancing safety and environmental protection
Warranty Information
Standard manufacturer warranty applies; please refer to SERVEREDGE warranty policy.
Available Now
The Serveredge 05m Red CAT6A Slim S/FTP Network Cable is available for immediate purchase, ideal for high-speed networking applications requiring reliable 10GbE performance.
