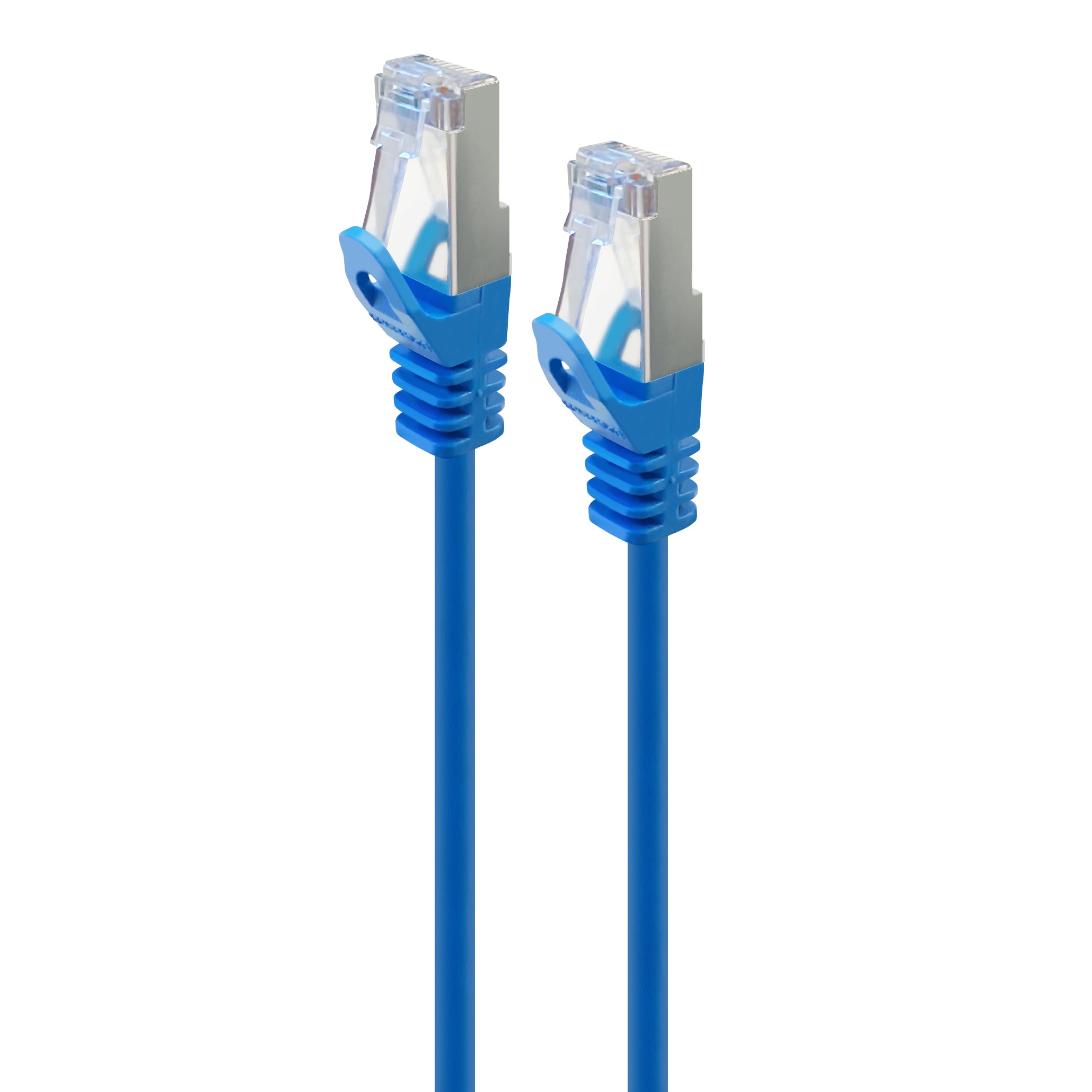

CAT6A Slim S/FTP Network Cable | 10G Support | LSZH Jacket | 5m | by SERVEREDGE
The CAT6A Slim S/FTP Network Cable is designed for high-speed 10G LANs, featuring a robust LSZH jacket and gold-plated RJ45 connectors. Ideal for installations requiring reliable data transmission, this cable supports up to 10GBASE-T Ethernet and is perfect for both home and professional networking environments. With enhanced shielding to suppress interference, it ensures optimal performance for your network needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CAT6A Slim S/FTP Network Cable | 10G Support | LSZH Jacket | 5m | by SERVEREDGE
Brand: SERVEREDGE
SKU: C6AS-05-BU-SHF
Alternatively Known As: CAT6A Network Cable, CAT6A Ethernet Cable, 10G Network Cable, Shielded CAT6A Cable, Slim CAT6A Cable
Technical Specifications
- Cable Type: Category 6A SFTP (Shielded Foiled Twisted Pair)
- Conductor Size: 30 AWG
- Connector Type: Gold plated 8x8 RJ45 plugs
- Shielding: Individual aluminium foil for each twisted pair plus overall copper braided shield
- Length: 5 meters
- Compliance: A-Tick, ETL verified to TIA/EIA-568C.2.1, IEC 802.3an, ISO/IEC 11801
- Jacket: LSZH (Low Smoke Zero Halogen)
- Dimensions (H x L x W): 5mm x 5000mm x 5mm
- Weight: 0.1 kg
Key Features
- Supports up to 10G LANS including 10GBASE-T Ethernet and 1000BASE-TX Fast Ethernet
- Each twisted pair individually wrapped in aluminium foil for enhanced shielding
- Overall copper braided shield for superior protection
- LSZH (Low Smoke Zero Halogen) jacket for safety
- Category 6A SFTP cable wired straight through
- 30 AWG, gold plated 8x8 (RJ45) plugs
- Snag-free strain relief molded boot for secure connection
- Suppresses Alien Near End Cross Talk (ANEXT) for superior 10GbE performance up to 100 meters
- A-Tick compliant as per ACMA requirements
- ETL verified to TIA/EIA-568C.2.1 Category 6a standards
- Compliant with IEC 802.3an and ISO/IEC 11801 standards
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure optimal performance and compliance with standards.
Applications
- High-speed 10G LANs including 10GBASE-T Ethernet
- 1000BASE-TX Fast Ethernet networks
- General networking requiring high data transmission rates
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic smoke emissions in case of fire, enhancing safety and environmental protection
Warranty Information
Standard manufacturer warranty applies; please refer to SERVEREDGE warranty policy for details.
Available Now
The Serveredge 5m Blue CAT6A Slim S/FTP Network Cable is available now for immediate purchase. Ideal for high-speed network installations requiring reliable 10GbE performance.
