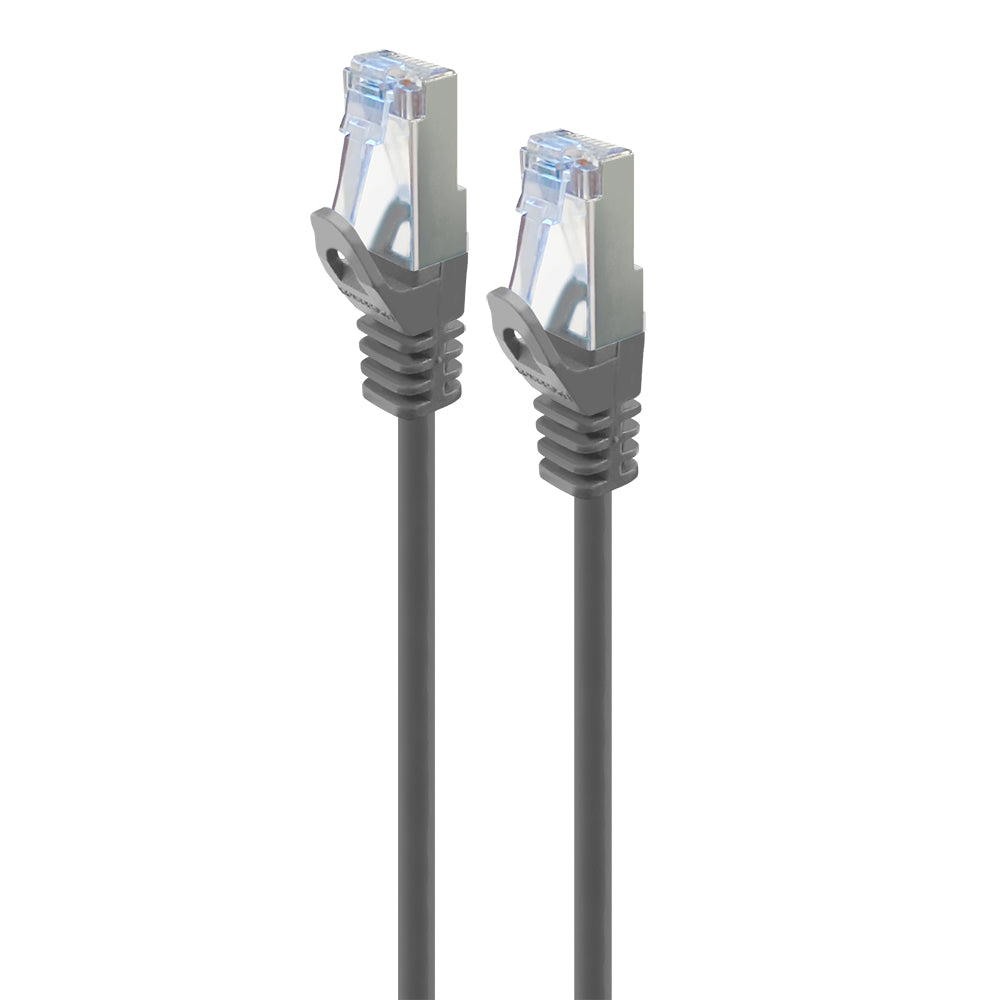

CAT6A Slim S/FTP Network Cable | 10GBASE-T Support | Aluminium Foil Shielding | LSZH Jacket | by SERVEREDGE
The CAT6A Slim S/FTP Network Cable is designed for high-speed 10G LANs, supporting 10GBASE-T Ethernet and 1000BASE-TX Fast Ethernet. With individually wrapped aluminium foil for each twisted pair and an overall copper braided shield, this cable ensures superior performance and reduced crosstalk. Ideal for professional installations, it features a low smoke zero halogen (LSZH) jacket for enhanced safety in networking environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CAT6A Slim S/FTP Network Cable | 10GBASE-T Support | Aluminium Foil Shielding | LSZH Jacket | by SERVEREDGE
Brand: SERVEREDGE
SKU: C6AS-03-GY-SHF
Alternatively Known As: CAT6A Network Cable, CAT6A Ethernet Cable, Slim S/FTP Network Cable, 10GBASE-T Cable, High-Speed LAN Cable
Technical Specifications
- Supports up to 10G LANS including 10GBASE-T Ethernet and 1000BASE-TX Fast Ethernet
- Each twisted pair individually wrapped in aluminium foil
- Overall copper braided shielded
- 30 AWG wire gauge
- Gold plated 8x8 RJ45 plugs
- Suppresses Alien Near End Cross Talk (ANEXT)
- Compliant with IEC 802.3an and ISO/IEC 11801 standards
- ETL verified to TIA/EIA-568C.2.1 Category 6a
- A-Tick compliant as per ACMA requirements
- Dimensions (H x L x W): 5mm x 3000mm x 5mm
- Weight: 0.05 kg
Key Features
- Individually wrapped aluminium foil for each twisted pair
- Overall copper braided shielding for enhanced protection
- LSZH (Low Smoke Zero Halogen) jacket for safety
- Category 6A SFTP cable wired straight through
- 30 AWG, gold plated 8x8 (RJ45) plugs
- Snag-free strain relief molded boot for secure connection
- Suppresses Alien Near End Cross Talk (ANEXT)
- ETL verified to TIA/EIA-568C.2.1 Category 6a
- Compliant to IEC 802.3an standards and ISO/IEC 11801
- A-Tick compliant as per ACMA requirements
Professional Installation Requirements
- Professional installation is recommended to ensure optimal network performance and compliance with standards.
Applications
- High-speed 10G LANs including 10GBASE-T Ethernet
- 1000BASE-TX Fast Ethernet networks
- General networking requiring superior 10GbE performance up to 100 meters
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic smoke emissions in case of fire, enhancing safety and environmental protection.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Serveredge 03m Grey CAT6A Slim S/FTP Network Cable is available now for immediate purchase. Ideal for high-speed networking applications requiring reliable and shielded cabling.
