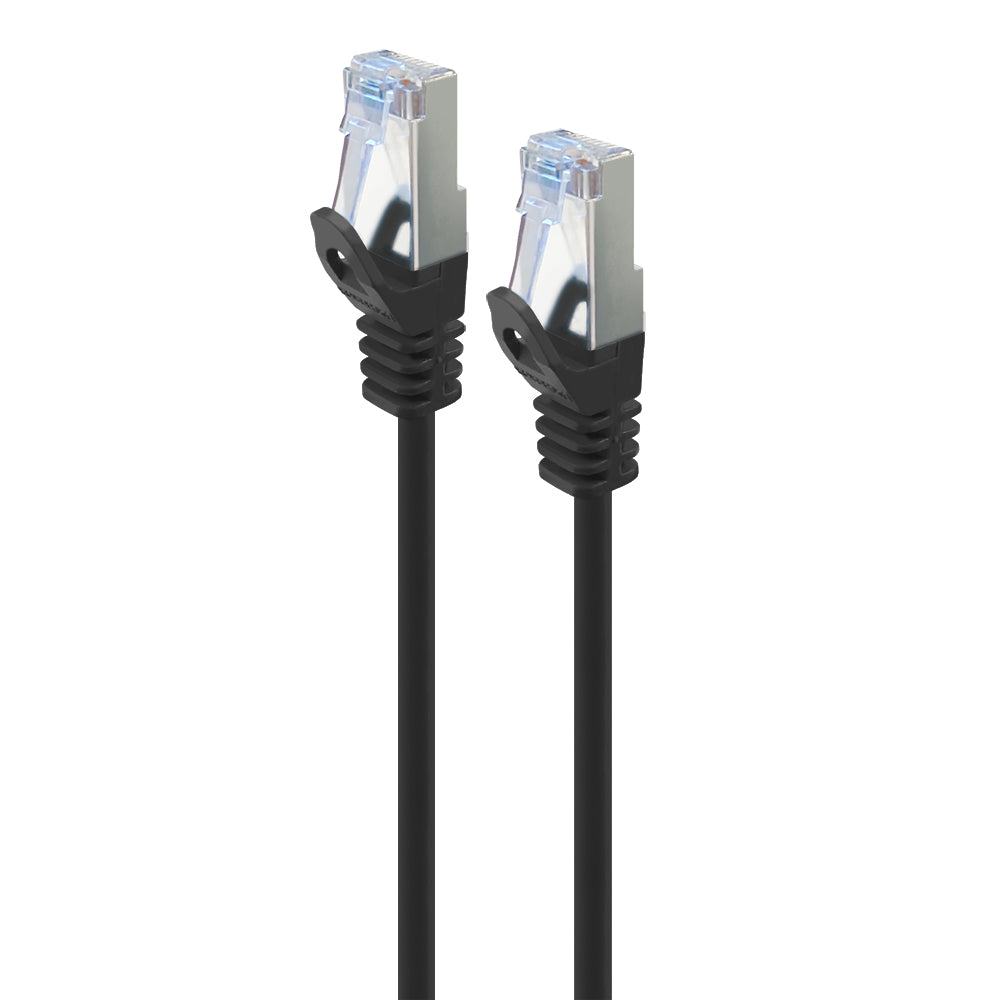

CAT6A Slim S/FTP Network Cable | 10GBASE-T Support | Gold Plated RJ45 | LSZH Jacket | @0.3m | by SERVEREDGE
The CAT6A Slim S/FTP Network Cable is designed for high-speed data transmission, supporting 10GBASE-T Ethernet up to 100 meters. With individually foil-wrapped twisted pairs and a gold-plated RJ45 connector, this cable ensures superior performance and minimal interference. Ideal for professional networking setups, it features a low smoke zero halogen (LSZH) jacket for enhanced safety in any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CAT6A Slim S/FTP Network Cable | 10GBASE-T Support | Gold Plated RJ45 | LSZH Jacket | @0.3m | by SERVEREDGE
Brand: SERVEREDGE
SKU: C6AS-0.3-BK-SHF
Alternatively Known As: CAT6A Network Cable, CAT6A Slim SFTP Cable, 10G Ethernet Cable, Shielded RJ45 Network Cable
Technical Specifications
- Cable Type: Category 6A SFTP
- Length: 0.3 meters
- Conductor Size: 30 AWG
- Connector: Gold plated 8x8 RJ45 plugs
- Shielding: Individually foil wrapped twisted pairs with overall copper braided shield
- Standards Compliance: TIA/EIA-568C.2.1 Category 6a, IEC 802.3an, ISO/IEC 11801
- Performance: Supports 10GBASE-T Ethernet up to 100 meters
- Jacket: LSZH (Low Smoke Zero Halogen)
- Dimensions (H x L x W): 5mm x 300mm x 5mm
- Weight: 0.02 kg
Key Features
- Supports up to 10G LANS including 10GBASE-T Ethernet and 1000BASE-TX Fast Ethernet
- Each twisted pair individually wrapped in aluminium foil for enhanced shielding
- Overall copper braided shield for superior protection
- LSZH (Low Smoke Zero Halogen) jacket for safety
- Category 6A SFTP cable wired straight through
- 30 AWG, gold plated 8x8 (RJ45) plugs
- Snag-free strain relief molded boot for secure connection
- Suppresses Alien Near End Cross Talk (ANEXT) for superior 10GbE performance up to 100 meters
- A-Tick compliant as per ACMA requirements
- ETL verified to TIA/EIA-568C.2.1 Category 6a
- Compliant with IEC 802.3an standards and ISO/IEC 11801
Professional Installation Requirements
- Professional installation by a qualified network technician or electrician is recommended to ensure optimal performance and compliance with standards.
Applications
- High-speed data transmission for 10G LANS
- 10GBASE-T Ethernet networks
- 1000BASE-TX Fast Ethernet
- General networking and data communication
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic smoke emissions in case of fire, enhancing safety and environmental protection
Warranty Information
Standard manufacturer warranty applies. Please refer to SERVEREDGE warranty policy for details.
Available Now
The Serveredge 0.3m Black CAT6A Slim S/FTP Network Cable is available now for immediate purchase. Ideal for high-speed networking environments requiring reliable 10GbE connections.
