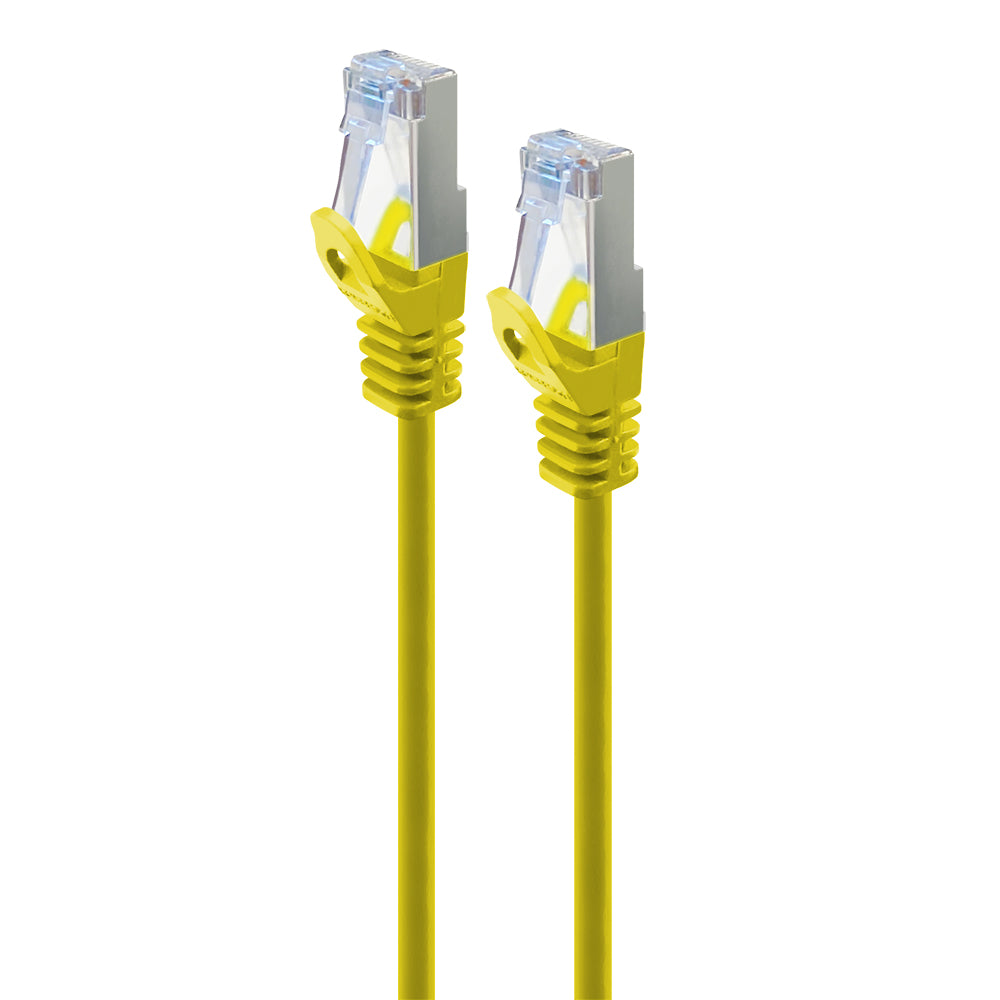

CAT6A Slim S/FTP Network Cable | 10GBASE-T Support | Gold Plated RJ45 | LSZH Jacket | @Each by SERVEREDGE
The CAT6A Slim S/FTP Network Cable is designed for high-speed data transmission, supporting 10GBASE-T Ethernet and 1000BASE-TX Fast Ethernet. With individually foil-wrapped pairs and overall copper braided shielding, it ensures superior performance and reduced crosstalk. Ideal for professional networking installations, this cable features a low smoke zero halogen jacket for enhanced safety and compliance with industry standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CAT6A Slim S/FTP Network Cable | 10GBASE-T Support | Gold Plated RJ45 | LSZH Jacket | @Each by SERVEREDGE
Brand: SERVEREDGE
SKU: C6AS-0.3-YL-SHF
Alternatively Known As: CAT6A Network Cable, CAT6A Ethernet Cable, Slim S/FTP Network Cable, 10G Ethernet Cable, High-Speed LAN Cable
Technical Specifications
- Cable Type: Category 6A SFTP
- Length: 0.3 meters
- Conductor Size: 30 AWG
- Plug Type: Gold plated 8x8 RJ45
- Shielding: Individually foil wrapped pairs with overall copper braided shield
- Standards Compliance: TIA/EIA-568C.2.1 Category 6a, IEC 802.3an, ISO/IEC 11801
- Performance: Supports 10GBASE-T Ethernet up to 100 meters
- Jacket: LSZH (Low Smoke Zero Halogen)
- Dimensions (H x L x W): 5mm x 300mm x 5mm
- Weight: 0.02 kg
Key Features
- Supports up to 10G LANS including 10GBASE-T Ethernet and 1000BASE-TX Fast Ethernet
- Each twisted pair individually wrapped in aluminium foil
- Overall copper braided shielding for enhanced protection
- LSZH (Low Smoke Zero Halogen) jacket for safety
- Category 6A SFTP cable wired straight through
- 30 AWG, gold plated 8x8 (RJ45) plugs
- Snag-free strain relief molded boot for secure connection
- Suppresses Alien Near End Cross Talk (ANEXT) for superior 10GbE performance up to 100 meters
- A-Tick compliant as per ACMA requirements
- ETL verified to TIA/EIA-568C.2.1 Category 6a
- Compliant with IEC 802.3an standards and ISO/IEC 11801
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure optimal performance and compliance with standards.
Applications
- High-speed data transmission for 10G LANS
- 10GBASE-T Ethernet networks
- 1000BASE-TX Fast Ethernet
- General networking and data communication
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic smoke emissions in case of fire, enhancing safety and environmental protection
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Serveredge 0.3m Yellow CAT6A Slim S/FTP Network Cable is available now for immediate purchase. Ideal for high-speed network installations requiring reliable 10GbE performance.
