CAT6A Slim S/FTP Network Cable | 10GBASE-T Support | LSZH Jacket | @0.5m by SERVEREDGE
The CAT6A Slim S/FTP Network Cable is designed for high-speed data transmission, supporting 10GBASE-T Ethernet networks with a robust LSZH jacket for safety. Ideal for both commercial and residential setups, this cable features individually foil shielded twisted pairs and gold plated RJ45 connectors, ensuring superior performance and minimal interference.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CAT6A Slim S/FTP Network Cable | 10GBASE-T Support | LSZH Jacket | @0.5m by SERVEREDGE
Brand: SERVEREDGE
SKU: C6AS-0.5-BK-SHF
Alternatively Known As: CAT6A Network Cable, CAT6A Ethernet Cable, Slim S/FTP Network Cable, 10G Ethernet Cable
Technical Specifications
- Cable Length: 0.5 meters
- Conductor: 30 AWG copper
- Shielding: Individually foil shielded twisted pairs with overall copper braided shield
- Connector: Gold plated 8x8 RJ45 plugs
- Cable Type: Category 6A SFTP
- Standards Compliance: TIA/EIA-568C.2.1 Category 6a, IEC 802.3an, ISO/IEC 11801
- Jacket Material: LSZH (Low Smoke Zero Halogen)
- Performance: Supports 10GBASE-T Ethernet up to 100 meters
- Dimensions (H x L x W): 5mm x 500mm x 5mm
- Weight: 0.05 kg
Key Features
- Supports up to 10G LANs including 10GBASE-T Ethernet and 1000BASE-TX Fast Ethernet
- Each twisted pair individually wrapped in aluminium foil for enhanced shielding
- Overall copper braided shield for superior protection
- LSZH (Low Smoke Zero Halogen) jacket for safety in enclosed spaces

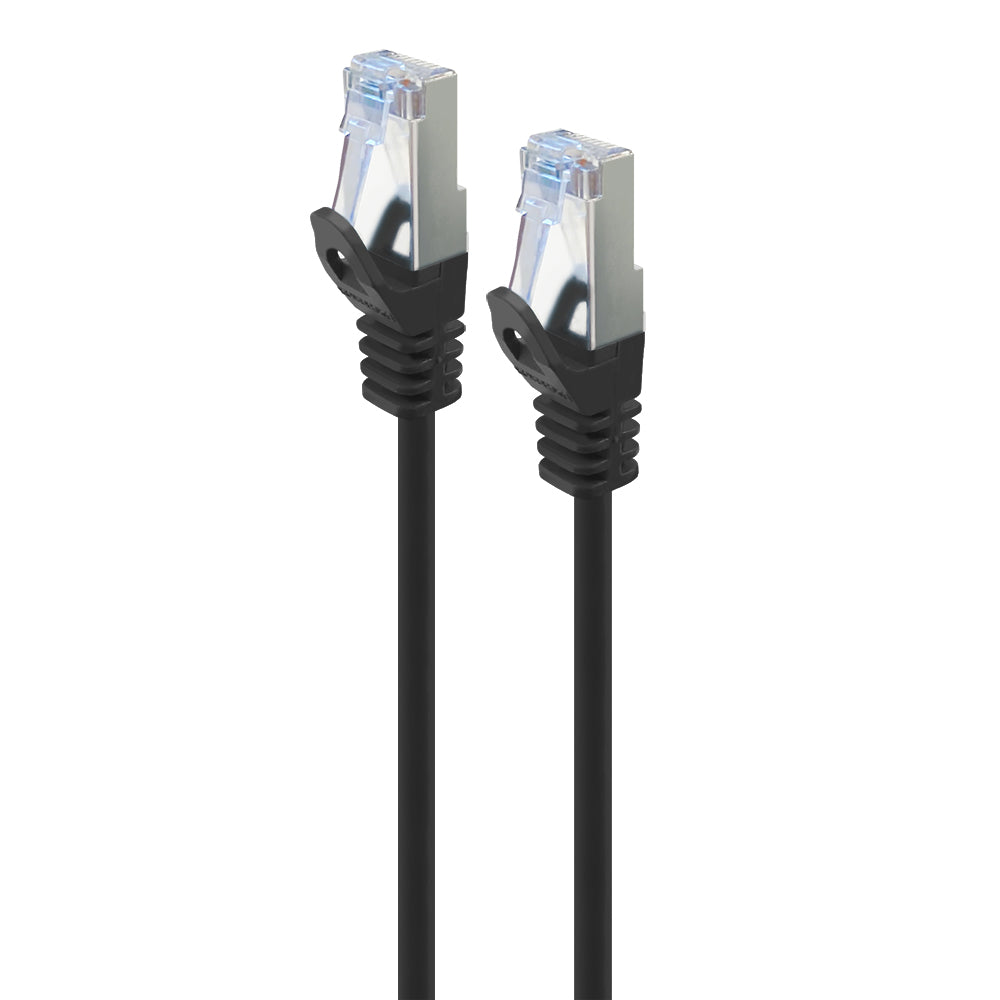

- Category 6A SFTP cable wired straight through with 30 AWG gold plated 8x8 RJ45 plugs
- Snag-free strain relief molded boot for secure and accurate connection
- Suppresses Alien Near End Cross Talk (ANEXT) for superior 10GbE performance up to 100 meters
- A-Tick compliant as per ACMA requirements
- ETL verified to TIA/EIA-568C.2.1 Category 6a standards
- Compliant with IEC 802.3an and ISO/IEC 11801 standards
Professional Installation Requirements
- Professional installation by a qualified network technician or electrician is recommended to ensure optimal performance and compliance with standards.
Applications
- High-speed data transmission for 10GBASE-T Ethernet networks
- Suitable for 1000BASE-TX Fast Ethernet and lower speed networks
- Ideal for office, data center, and home networking setups
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic smoke emissions in case of fire, enhancing safety and environmental protection
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Serveredge 0.5m Black CAT6A Slim S/FTP Network Cable is available for immediate purchase, ideal for high-speed network installations in commercial and residential environments.
