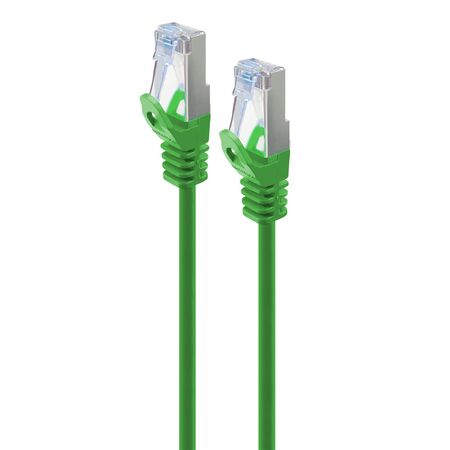

CAT6A Slim S/FTP Network Cable | 10GBASE-T Support | LSZH Jacket | 0.5m Length | by SERVEREDGE
The CAT6A Slim S/FTP Network Cable is designed for high-speed data transmission, supporting 10GBASE-T Ethernet networks. With individually foil-wrapped pairs and an LSZH jacket, it ensures superior shielding and safety. Ideal for data centers and general networking, this cable provides reliable performance and compliance with industry standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CAT6A Slim S/FTP Network Cable | 10GBASE-T Support | LSZH Jacket | 0.5m Length | by SERVEREDGE
Brand: SERVEREDGE
SKU: C6AS-0.5-GN-SHF
Alternatively Known As: CAT6A Network Cable, CAT6A Ethernet Cable, Shielded CAT6A Cable, 10G Ethernet Cable, Slim CAT6A Patch Cable
Technical Specifications
- Cable Type: Category 6A SFTP
- Length: 0.5 meters
- Conductor: 30 AWG copper
- Shielding: Individually foil wrapped pairs with overall copper braided shield
- Connector: Gold plated 8x8 RJ45 plugs
- Standards Compliance: TIA/EIA-568C.2.1 Category 6a, IEC 802.3an, ISO/IEC 11801
- Performance: Supports 10GBASE-T Ethernet up to 100 meters
- Jacket: LSZH (Low Smoke Zero Halogen)
- Dimensions (H x L x W): 5mm x 500mm x 5mm
- Weight: 0.05 kg
Key Features
- Supports up to 10G LANS including 10GBASE-T Ethernet and 1000BASE-TX Fast Ethernet
- Each twisted pair individually wrapped in aluminium foil for enhanced shielding
- Overall copper braided shield for superior protection
- LSZH (Low Smoke Zero Halogen) jacket for safety
- Category 6A SFTP cable wired straight through with 30 AWG gold plated 8x8 RJ45 plugs
- Snag-free strain relief molded boot for secure and accurate connection
- Suppresses Alien Near End Cross Talk (ANEXT) for superior 10GbE performance up to 100 meters
- A-Tick compliant as per ACMA requirements
- ETL verified to TIA/EIA-568C.2.1 Category 6a standards
- Compliant with IEC 802.3an and ISO/IEC 11801 standards
Professional Installation Requirements
- Professional installation is recommended to ensure optimal network performance and compliance with safety standards.
Applications
- High-speed data transmission for 10G LANS
- 10GBASE-T Ethernet networks
- 1000BASE-TX Fast Ethernet
- General networking and data centers requiring superior shielding and performance
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic smoke emissions in case of fire, enhancing environmental and user safety
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Serveredge 0.5m Green CAT6A Slim S/FTP Network Cable is available now for immediate purchase. Ideal for high-speed networking applications requiring reliable and shielded cabling.
