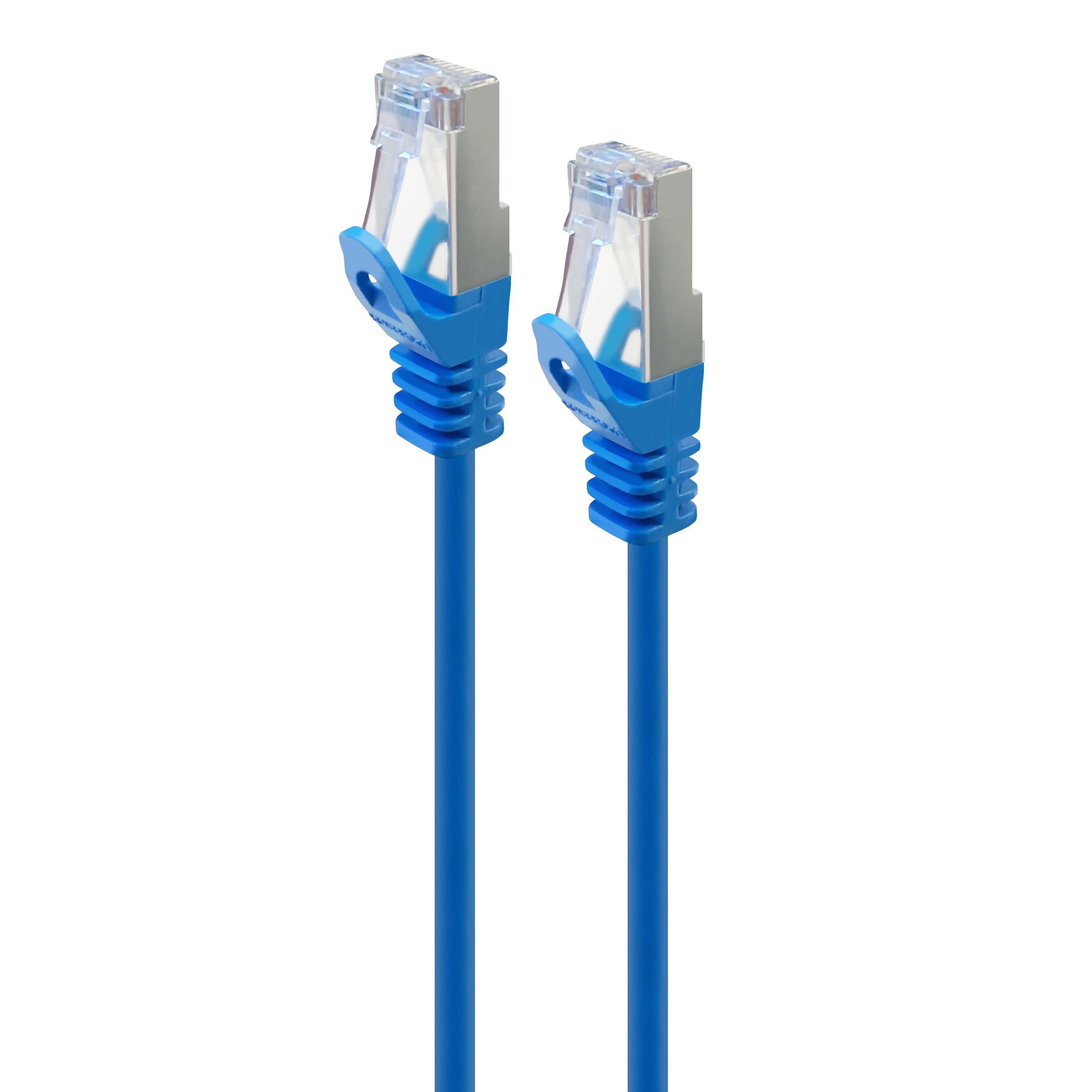

CAT6A Slim S/FTP Network Cable | 10GBASE-T Support | LSZH Jacket | 1.5m | by SERVEREDGE
The CAT6A Slim S/FTP Network Cable is designed for high-speed networking, supporting 10GBASE-T Ethernet up to 100 meters. With a low smoke zero halogen (LSZH) jacket and individual aluminum foil shielding for each twisted pair, this cable ensures superior performance and safety. Ideal for professional installations in data centers and high-speed LAN environments, it features gold-plated RJ45 connectors for reliable connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CAT6A Slim S/FTP Network Cable | 10GBASE-T Support | LSZH Jacket | 1.5m | by SERVEREDGE
Brand: SERVEREDGE
SKU: C6AS-1.5-BU-SHF
Alternatively Known As: CAT6A Network Cable, CAT6A Ethernet Cable, 10GBASE-T Cable, Shielded CAT6A Cable, Slim CAT6A Patch Cable
Technical Specifications
- Cable Type: Category 6A SFTP (Shielded Foiled Twisted Pair)
- Conductor Size: 30 AWG
- Connector: Gold plated 8x8 (RJ45) plugs
- Shielding: Individual aluminium foil for each twisted pair plus overall copper braided shield
- Length: 1.5 meters
- Compliance: ETL verified to TIA/EIA-568C.2.1 Category 6a, IEC 802.3an, ISO/IEC 11801
- Jacket: LSZH (Low Smoke Zero Halogen)
- Performance: Supports 10GBASE-T Ethernet up to 100 meters
- Dimensions (H x L x W): 5mm x 1500mm x 5mm
- Weight: 0.05 kg
Key Features
- Supports up to 10G LANS including 10GBASE-T Ethernet and 1000BASE-TX Fast Ethernet
- Each twisted pair individually wrapped in aluminium foil for enhanced shielding
- Overall copper braided shield for superior protection
- LSZH (Low Smoke Zero Halogen) jacket for safety
- Category 6A SFTP cable wired straight through with 30 AWG gold plated 8x8 (RJ45) plugs
- Snag-free strain relief molded boot for secure and accurate connection
- Suppresses Alien Near End Cross Talk (ANEXT) for superior 10GbE performance
- A-Tick compliant as per ACMA requirements
- ETL verified to TIA/EIA-568C.2.1 Category 6a standards
- Compliant with IEC 802.3an and ISO/IEC 11801 standards
Professional Installation Requirements
- Professional installation is recommended to ensure optimal network performance and compliance with safety standards.
Applications
- High-speed 10G LANs including 10GBASE-T Ethernet
- 1000BASE-TX Fast Ethernet networks
- General networking requiring superior 10GbE performance up to 100 meters
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic smoke emissions in case of fire, enhancing safety and environmental protection
Warranty Information
Standard manufacturer warranty applies; please refer to SERVEREDGE warranty policy for details.
Available Now
The Serveredge 1.5m Blue CAT6A Slim S/FTP Network Cable is available for immediate purchase, ideal for high-speed networking environments requiring reliable 10GbE connections.
