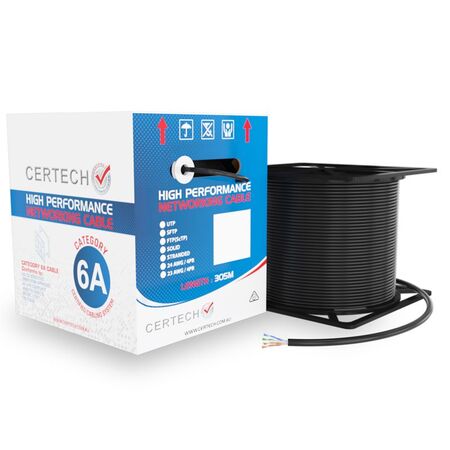

Cat6A U UTP Data Cable Solid 23AWG 500MHz Black 305m Reel Certech
Cat6A Ethernet cable with 305m length and LSZH jacket—ideal for data centers and commercial networking. Built for high-speed 10Gbps data transmission, with 100% bare
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cable Type: UTP
- Jacket Material: LSZH
- Conductor Material: Bare Copper Cable
- Insulation Material: HDPE
- Cable Length: 305m
- Cable Gauge: 23AWG
- Operating Frequency: 500MHz
- Dielectric Strength (Max.): DC 1000V 1min No Breakdown
- NVP: 69%
- Installation Temperature: -20 ~ +60 degrees Celsius
- Operating Temperature: -40 ~ +75 degrees Celsius
- Dimensions (H x L x W): 20 mm x 305000 mm x 20 mm
- Weight: 15.2 kg
Key Features
- Supports data transmission speeds of up to 10 Gbps.
- 100% bare copper cable for superior performance.
- LSZH jacket for reduced smoke and toxicity.
- Integrated pair separator for improved AXT performance.
Professional Installation Requirements
- Installation by a CERTECH certified installer is recommended for optimal performance.
Applications
- Data centers and server rooms
- Commercial buildings and offices
- Residential networking solutions
Standards & Compliance
- Complies with AS 11801 for performance criteria.
Environmental Benefits
- PVC-free construction reduces environmental impact.
- LSZH jacket minimizes toxic emissions in case of fire.
Warranty Information
25 Year Certified Warranty Program available.
Available Now
The CERTECH 305M Cat6A 10G U/UTP Solid Cable, Black LSZH Jacket is available now for immediate purchase. Ideal for data networking applications.
FAQ
Q: What performance advantages does the integrated pair separator provide in this cable?
A: The integrated pair separator in the Cat6A U/UTP Data Cable Solid 23AWG 500MHz Black 305m Reel Certech improves AXT (Alien Crosstalk) performance by maintaining consistent physical separation between pairs across the full 305m length. Combined with 23AWG bare copper conductors and a 500MHz operating frequency, this supports reliable 10 Gbps data transmission in data centres, server rooms, and commercial network environments.
Q: Does this cable come with a warranty, and are there installer requirements?
A: Yes. The NCC6ALSZHBLACK is backed by a 25-Year Certified Warranty Program. Installation by a CERTECH certified installer is recommended for optimal performance and to ensure the warranty conditions are met.
Terminate this cable at the wall outlet using a Cat6A UTP data socket with toolless IDC connection for high-speed transmission environments.
Rack termination for this reel can be handled through a 24-port unloaded shielded patch panel compatible with Cat5e, Cat6, and Cat6A structured cabling systems.
For installations where a blue jacket is preferred in the same Cat6A U/UTP LSZH category, the Cat6A U/UTP data cable solid 23AWG 500MHz blue 305m reelfrom Certech is available as a colour variant.
