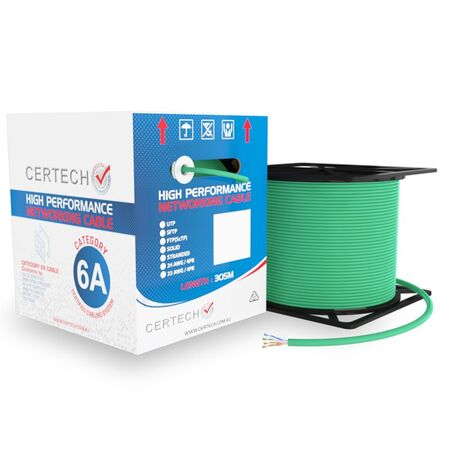

Cat6A U UTP Data Cable Solid 23AWG 500MHz Green 305m Reel Certech
Cat6A Ethernet cable with 305M length and 10G U UTP design—ideal for data centers and commercial networking. Built for high-speed data transmission, with a green LSZ
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cable Type: UTP
- Jacket Material: LSZH
- Conductor Material: Bare Copper Cable
- Insulation Material: HDPE
- Cable Length: 305m
- Cable Diameter: 0.57mm
- Cable Gauge: 23AWG
- DC Resistance (Max.): ≤9.38Ω/100m
- Operating Frequency: 500MHz
- Installation Temperature: -20 ~ +60 degrees Celsius
- Operating Temperature: -40 ~ +75 degrees Celsius
- Dimensions (H x L x W): 0.7mm x 305000mm x 0.57mm
- Weight: 15.2 kg
Key Features
- Supports data transmission speeds of up to 10 Gbps.
- 100% bare copper cable for superior performance.
- LSZH jacket for reduced smoke and toxicity.
- Integrated pair separator for improved AXT performance.
- Internal strength member for enhanced pulling tension.
Professional Installation Requirements
- Installation by a CERTECH certified installer is recommended to ensure compliance with performance standards.
Applications
- Data centers and server rooms
- Commercial buildings and offices
- Residential networking solutions
Standards & Compliance
- Complies with AS 11801 (1-6) for performance criteria.
Environmental Benefits
- PVC-free construction reduces environmental impact.
- LSZH materials minimize toxic emissions in case of fire.
Warranty Information
25 Year Certified Warranty Program available when installed by a CERTECH certified installer.
Available Now
The CERTECH 305M Cat6A 10G U/UTP Solid Cable, Green LSZH Jacket is available now for immediate purchase. Ideal for high-speed networking applications.
FAQ
Q: What is the internal strength member in this cable, and what benefit does it provide?
A: The internal strength member is a structural element running through the cable that provides enhanced resistance to pulling tension during installation. This is particularly useful when pulling the cable through conduit or across longer runs in commercial buildings and data centres, reducing the risk of conductor damage or pair displacement during installation.
Q: Does this cable comply with Australian performance standards, and is a certified installer required?
A: Yes. The Cat6A U/UTP Data Cable Solid 23AWG 500MHz Green 305m Reel Certech complies with AS 11801 (I-6) for performance criteria. Installation by a CERTECH certified installer is recommended to ensure compliance with performance standards and to validate the 25-Year Certified Warranty Program.
Terminate this cable at the wall outlet using a Cat6A UTP data socket with toolless IDC connection for compliant high-speed installations.
Rack termination for this reel can be managed through a 24-port unloaded shielded patch panel compatible with Cat5e, Cat6, and Cat6A structured cabling systems.
For installations where a grey jacket is preferred in the same Cat6A U/UTP LSZH category, the Cat6A U/UTP data cable solid 23AWG 500MHz grey 305m reel from Certech is available as a colour variant.
