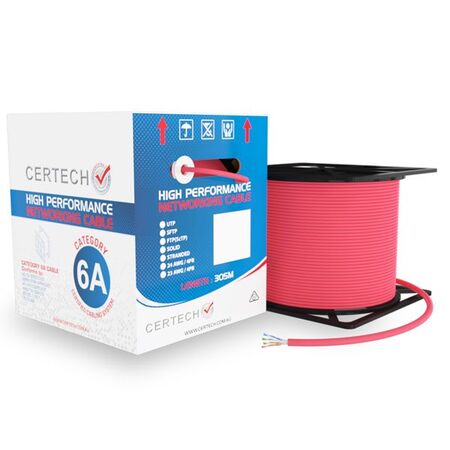

Cat6A U UTP Data Cable Solid 23AWG 500MHz Red 305m Reel Certech
Cat6A Ethernet cable with 305M length and LSZH red jacket—ideal for data centers and commercial buildings. Built for high-speed networking, with 10Gbps support and 1
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cable Type: UTP
- Jacket Material: LSZH
- Conductor Material: Bare Copper Cable
- Insulation Material: HDPE
- Cable Length: 305m
- Cable Diameter: 0.57
- Cable Gauge: 23AWG
- Jacket Thickness: 0.70±0.05mm
- DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair≤4.0%
- DC Resistance (Max.): ≤9.38Ω/100m
- Dielectric Strength (Max.): DC 1000V 1min No Breakdown
- Mutual Capacitance at Frequency: ≤5.8nF/100m
- NVP: 69%
- Operating Frequency: 500MHz
- Flame Test Method: IEC60332-1-2
- Installation Temperature: -20 ~ +60 degrees Celsius
- Operating Temperature: -40 ~ +75 degrees Celsius
- Dimensions (H x L x W): 100mm x 305000mm x 100mm
- Weight: 15.2 kg
Key Features
- Supports data transmission speeds of up to 10 Gbps.
- 100% bare copper cable for superior performance.
- LSZH jacket for reduced smoke and toxicity.
- Integrated pair separator for improved AXT performance.
Professional Installation Requirements
- Installation by a CERTECH certified installer is recommended for optimal performance and warranty compliance.
Applications
- Data centers and server rooms
- Commercial buildings and offices
- Residential networking solutions
Standards & Compliance
- Complies with AS 11801 (1-6) for performance criteria.
Environmental Benefits
- PVC-free design reduces environmental impact.
- LSZH materials minimize toxic emissions in case of fire.
Warranty Information
25 Year Certified Warranty Program available when installed by a CERTECH certified installer.
Available Now
The CERTECH 305M Cat6A 10G U/UTP Solid Cable, Red LSZH Jacket is available now for immediate purchase. Ideal for high-speed networking applications.
FAQ
Q: What is the red jacket typically used for in structured cabling environments?
A: Red jackets are commonly used in structured cabling installations as a colour-coding convention to identify specific network segments, zones, or critical circuits — such as security systems, emergency networks, or dedicated server room connections. The red jacket on this cable carries no performance difference compared to other colour variants in the same Cat6A U/UTP LSZH range; all specifications, conductor gauge, and compliance ratings are identical.
Q: Does this cable comply with Australian standards, and what warranty does it carry?
A: Yes. The Cat6A U/UTP Data Cable Solid 23AWG 500MHz Red 305m Reel Certech complies with AS 11801 (I-6) for performance criteria. It is backed by a 25-Year Certified Warranty Program when installed by a CERTECH certified installer, as recommended for optimal performance and warranty compliance.
Terminate this cable at the wall outlet using a Cat6A UTP data socket with toolless IDC connection for compliant high-speed installations.
Rack termination for this reel can be handled through a 24-port unloaded shielded patch panel compatible with Cat5e, Cat6, and Cat6A structured cabling systems.
For installations where a white jacket is preferred in the same Cat6A U/UTP LSZH category, the Cat6A U/UTP data cable solid 23AWG 500MHz white 305m reel from Certech is available as a colour variant.
