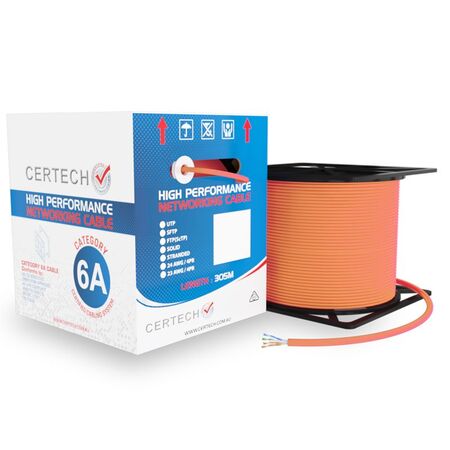

Cat6A U UTP Data Cable Solid 23AWG Orange 305m Reel Certech
Cat6A Ethernet cable with 305m length and LSZH orange jacket—ideal for data centers and commercial networking. Built for high-speed 10Gbps data transmission, with 10
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cable Type: UTP
- Jacket Material: LSZH
- Conductor Material: Bare Copper Cable
- Insulation Material: HDPE
- Cable Length: 305m
- Cable Diameter: 0.57
- Cable Gauge: 23AWG
- Jacket Thickness: 0.70±0.05mm
- DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair≤4.0%
- DC Resistance (Max.): ≤9.38Ω/100m
- Dielectric Strength (Max.): DC 1000V 1min No Breakdown
- Mutual Capacitance at Frequency: ≤5.8nF/100m
- NVP: 69%
- Operating Frequency: 500MHz
- Flame Test Method: IEC60332-1-2
- Installation Temperature: -20 ~ +60 degrees Celsius
- Operating Temperature: -40 ~ +75 degrees Celsius
- Dimensions (H x L x W): 300mm x 305000mm x 300mm
- Weight: 15.2 kg
Key Features
- Supports data transmission speeds of up to 10 Gbps.
- 100% bare copper cable for superior performance.
- LSZH jacket for reduced smoke and toxicity.
- Integrated pair separator for improved AXT performance.
Professional Installation Requirements
- Installation by a CERTECH certified installer is recommended for optimal performance and warranty compliance.
Applications
- Data centers and server rooms
- Commercial buildings and offices
- Residential networking solutions
Standards & Compliance
- Complies with AS 11801 (1-6) for performance criteria.
Environmental Benefits
- PVC-free construction reduces environmental impact.
- LSZH materials minimize toxic emissions in case of fire.
Warranty Information
25 Year Certified Warranty Program available when installed by a CERTECH certified installer.
Available Now
The CERTECH 305M Cat6A 10G U/UTP Solid Cable, Orange LSZH Jacket is available now for immediate purchase. Ideal for data networking applications.
FAQ
Q: Where is an orange jacket Cat6A cable typically used in structured cabling?
A: Orange jacket Cat6A cable is commonly used in structured cabling installations as a colour-coding convention to identify specific network segments — such as voice over IP (VoIP) systems, guest networks, or dedicated zones within commercial buildings and data centres. The orange jacket carries no performance difference compared to other colour variants in the same Cat6A U/UTP LSZH range; all specifications, conductor gauge, and compliance ratings are identical.
Q: Does this cable comply with Australian standards, and what warranty does it carry?
A: Yes. The Cat6A U/UTP Data Cable Solid 23AWG Orange 305m Reel Certech complies with AS 11801 (I-6) for performance criteria. It is backed by a 25-Year Certified Warranty Program when installed by a CERTECH certified installer, as recommended for optimal performance and warranty compliance.
Terminate this cable at the wall outlet using a Cat6A UTP data socket with toolless IDC connection for compliant high-speed installations.
Rack termination for this reel can be handled through a 24-port unloaded shielded patch panel compatible with Cat5e, Cat6, and Cat6A structured cabling systems.
For installations where a purple jacket is preferred in the same Cat6A U/UTP LSZH category, the Cat6A U/UTP data cable solid 23AWG purple 305m reel from Certech is available as a colour variant.
