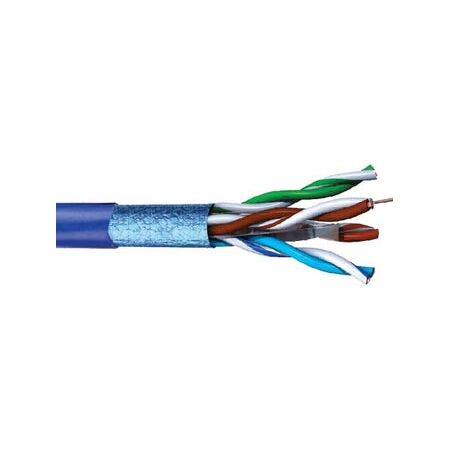

Cat6A UTP Data Cable Solid 23AWG LSZH Blue 305m Reel Cabac
Category 6A F-UTP Ethernet cable in blue, offering 305 meters of length—ideal for high-speed networking. Built for both residential and commercial use, with LSZH mat
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductor: 23 AWG solid bare copper
- Shielding: Overall foil shield (F-UTP)
- Jacket: Low Smoke Zero Halogen (LSZH)
- Length: 305 meters
- Performance: Supports Cat6A Link and Channel standards (AS/NZS 11801.1, ANSI/TIA 568.2-D)
- Data Rate: Supports 10 Gigabit Ethernet
- Dimensions (H x L x W): 7mm x 305000mm x 7mm
- Weight: 3.5 kg
Key Features
- Shielded cable with overall foil shield (F-UTP) for reduced electromagnetic interference
- Supports Cat6A Link and Channel performance standards per AS/NZS 11801.1 and ANSI/TIA 568.2-D
- 23 AWG solid bare copper conductors for reliable signal transmission
- Low Smoke Zero Halogen (LSZH) jacket for enhanced fire safety
- Supports true 10 Gigabit Ethernet performance
- Comes on a reel for easy installation and cable management
Professional Installation Requirements
- Professional installation by qualified network technicians or electricians is recommended to ensure compliance with performance standards and proper cable handling.
Applications
- Permanent network installations from patch panel to wall outlet
- Data centers and office networking requiring 10 Gigabit Ethernet
- Structured cabling systems in commercial and residential buildings
Standards & Compliance
- Complies with AS/NZS 11801.1 for structured cabling systems
Environmental Benefits
- LSZH jacket reduces toxic smoke and halogen emissions in case of fire, improving safety and environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Ethernet Cable Category 6A F-UTP Blue 305M LSZH is available now for immediate purchase. Ideal for permanent network installations requiring high-speed 10 Gigabit Ethernet performance.
FAQ
Q: What shielding type does this Cabac Cat6A cable use, and how does it affect performance?
A: This cable uses F-UTP (Foiled Unshielded Twisted Pair) construction — an overall foil shield wraps the cable bundle to reduce electromagnetic interference, while individual pairs remain unshielded. It supports Cat6A Link and Channel performance standards per AS/NZS 11801.1 and ANSI/TIA 568.2-D, delivering true 10 Gigabit Ethernet performance across the full 305m reel length.
Q: Is this cable suitable for fire-sensitive or enclosed commercial installations?
A: Yes. The LSZH (Low Smoke Zero Halogen) jacket reduces toxic smoke and halogen emissions in the event of fire, making it appropriate for data centres, office networking environments, and structured cabling systems in commercial and residential buildings where fire safety is a consideration. Compliance with AS/NZS 11801.3 for structured cabling systems supports its use in regulated Australian network environments.
Terminate this cable at the wall outlet using a Cat6A UTP data socket with toolless IDC connection for a clean, compliant finish in commercial and residential installations.
Rack termination for this 305m reel can be managed through a 24-port unloaded shielded patch panel compatible with Cat5e, Cat6, and Cat6A structured cabling systems.
For Cat6A UTP installations requiring a grey jacket in the same Cabac range, the Cat6A UTP data cable solid 23AWG LSZH grey from Cabac is available as a colour variant.
