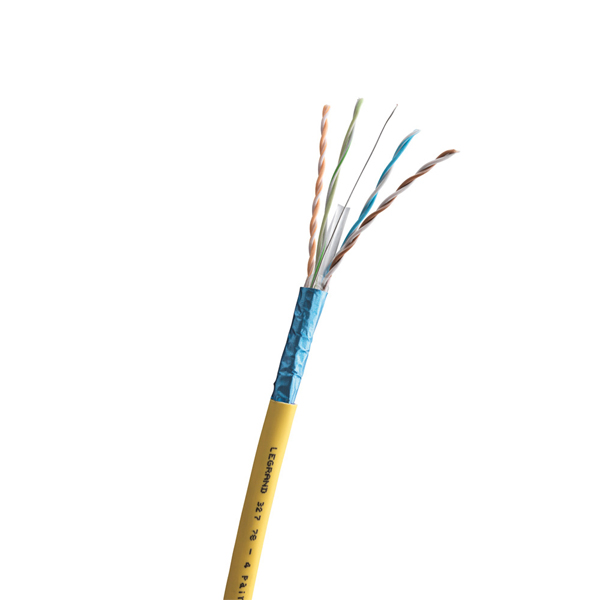

Category 6A F/UTP LAN Cable | 10 Gbps Data Rate | 500m Length | LSZH Sheath | @MT of 1 | by Legrand
The Category 6A F/UTP LAN Cable is designed for high-speed data transmission, supporting up to 10 Gbps with a frequency of 500 MHz. Ideal for enterprise and data center networks, this 500-meter cable features a low smoke zero halogen (LSZH) sheath for safety and reduced electromagnetic interference. Perfect for structured cabling in commercial buildings, it ensures reliable performance and compliance with industry standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Category 6A F/UTP LAN Cable | 10 Gbps Data Rate | 500m Length | LSZH Sheath | @MT of 1 | by Legrand
Brand: Legrand
SKU: 032778G
Alternatively Known As: Cat6A LAN Cable, Category 6A Ethernet Cable, F/UTP Network Cable, 10 Gigabit LAN Cable, Shielded Cat6A Cable
Technical Specifications
- Category: 6A F/UTP
- Data Rate: Up to 10 Gbps
- Frequency: 500 MHz
- Pairs: 4 pairs (2x4 twisted pairs)
- Impedance: 100 ohms
- Sheath: LSZH (Low Smoke Zero Halogen)
- Colour: Grey RAL 7035
- Length: 500 meters
- Standards Compliance: ISO/IEC 11801, EN 50173, ANSI/TIA 568
- Dimensions (H x L x W): 10mm x 500000mm x 10mm
- Weight: 12 kg
Key Features
- Category 6A F/UTP cable supports up to 10 Gbps data rate
- Shielded cable design reduces electromagnetic interference
- 500-meter length on a reel for easy handling and installation
- 4 pairs of 2x4 twisted pair cables with 100 ohm impedance
- Performance rated at 500 MHz
- LSZH (Low Smoke Zero Halogen) sheath for safety
- ANSI/TIA colour code for easy identification
- Compliant with ISO/IEC 11801, EN 50173, and ANSI/TIA 568 standards
Professional Installation Requirements
- Installation should be performed by qualified network cabling professionals to ensure compliance with standards and optimal network performance.
Applications
- High-speed data transmission for enterprise and data center networks
- Structured cabling for commercial buildings and offices
- Integration with Legrand cable management and trunking systems
- Suitable for 10 Gigabit Ethernet networks
Standards & Compliance
- Complies with AS/NZS 3080 for telecommunications cabling
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- LSZH sheath reduces toxic smoke and halogen emissions in case of fire
- Durable cable design reduces need for frequent replacements
- Supports energy-efficient high-speed data transmission
Warranty Information
Legrand provides a standard warranty covering manufacturing defects; please refer to Legrand's official warranty policy for detailed terms.
Available Now
The Legrand LCS³ Category 6A 4 Pairs F/UTP LAN Cable 500m Grey is available for immediate purchase, ideal for high-speed network infrastructure in commercial and enterprise environments.
