Trade Discount 20%

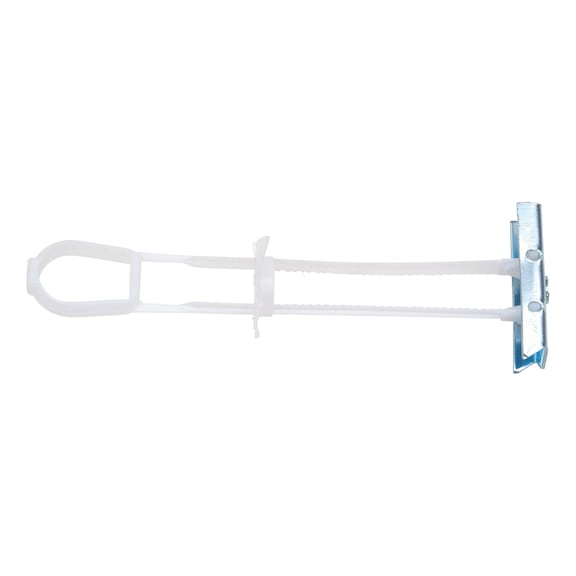

Cavity Anchor M8 | Universal Pull Tie | Zinc Plated | @Pack of 25 | by Wurth
Cavity Anchor M8 with universal pull tie and zinc plating — ideal for wall-mounted cabinets and pipe suspensions. Built for professionals, this anchor offers easy installation without a setting tool and immediate load-bearing capacity, making it perfect for various indoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type description: W-HR 8
- Thread type x anchor diameter: M8
- Min./max. board thickness/mirror thickness (d a): 10-51 mm
- Material: Steel / plastic
- Nominal drill-bit diameter (d 0): 18 mm
- Surface: Zinc plated
- Through-hole in the component to be connected (d f): 9 mm
- Dimensions (H x L x W): 25mm x 100mm x 25mm
- Weight: 0.1 kg
Key Features
- Universal cavity anchor with pull tie for metric screws
- Suitable for all plate thicknesses from 10 to 51 mm
- Can be applied without a setting tool
- Good holding power due to large load application surface
- Universal clamping range
- Simple and easy installation without setting tool
- Immediate load-bearing capacity with no waiting
- Compatible with all metric screw head shapes
- Screw can be released
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct load application and compliance with relevant building codes.
Applications
- Pipe suspensions
- Wall-mounted cabinets
- Air-conditioning units for indoors
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel and plastic construction reduces need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Cavity Anchor W HR DWL W HR A2K M8 25 PCS is available now for immediate purchase. Ideal for use in lightweight partition walls and indoor mounting applications.
