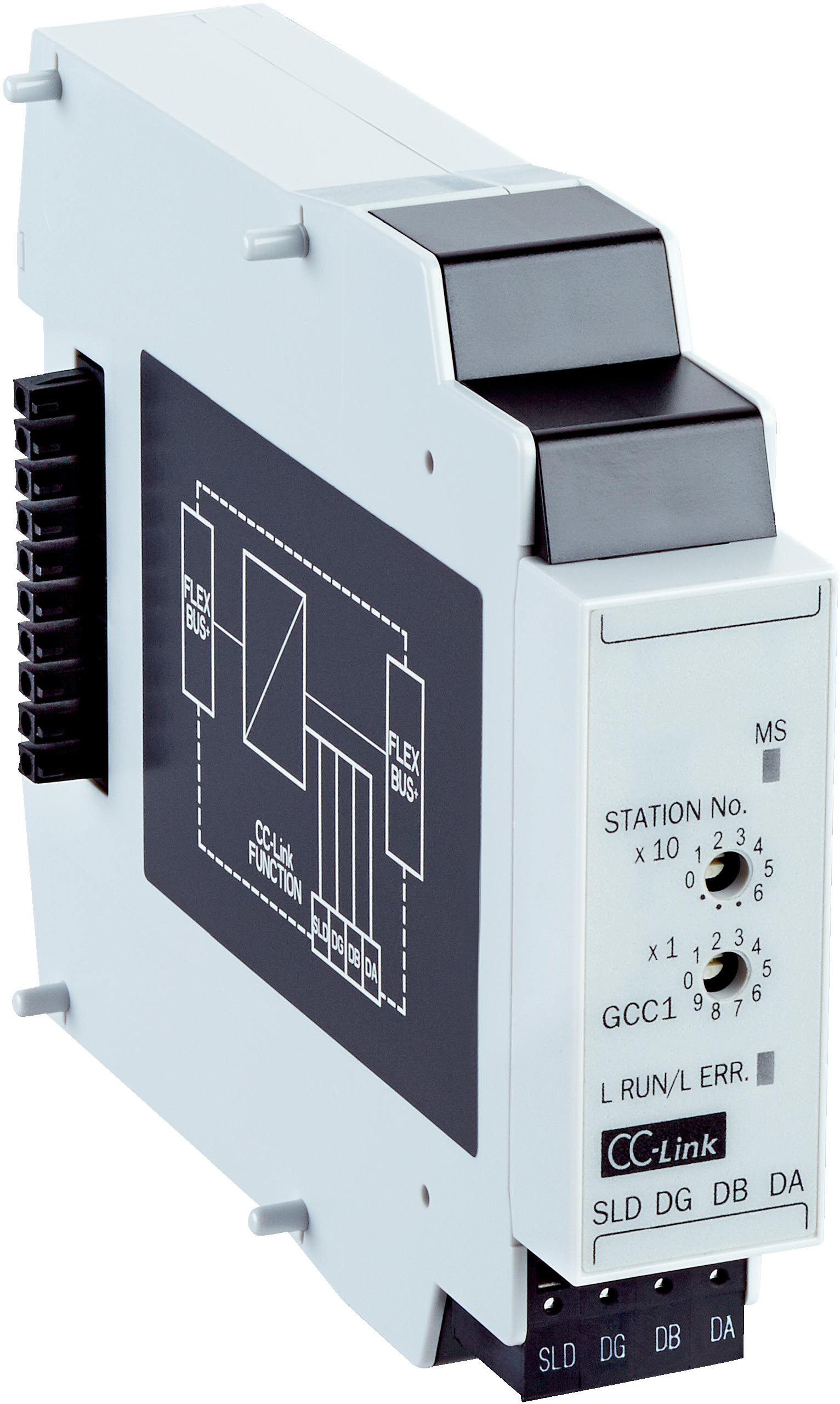

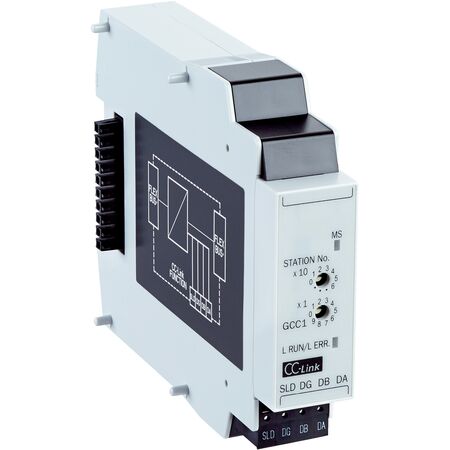

CC-Link Gateway Module FX0-GCC100200 | Low Power Consumption | IP20 Enclosure | by SICK
The CC-Link Gateway Module FX0-GCC100200 is designed for seamless integration into industrial automation systems. With configuration via Flexi Soft Designer software and a low internal power consumption of ≤ 1.4 W, it’s perfect for factory communication networks and machine control. Its compact design and IP20 enclosure rating ensure reliability in various environments, making it an essential component for efficient industrial operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Module Type: Gateway
- Fieldbus Network: CC-Link
- Configuration Method: Via Flexi Soft Designer software
- Data Transmission Rates: 156 kbit/s, 625 kbit/s, 2.5 Mbit/s
- Connection Type: Plug-in spring terminals
- Protection Class: III (EN 61140)
- Voltage Supply: Via FLEXBUS+
- Internal Power Consumption: ≤ 1.4 W
- Enclosure Rating: IP20 (EN 60529)
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: -25 °C to +70 °C
- Humidity: ≤ 95%, Non-condensing
- Dimensions (H x L x W): 97mm x 121mm x 23mm
- Weight: 0.12 kg
Key Features
- Gateway module for CC-Link industrial network
- Configuration via Flexi Soft Designer software
- Plug-in spring terminal connection
- Low internal power consumption (≤ 1.4 W)
- Protection class III (EN 61140)
- Compact size with IP20 enclosure rating
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with industrial network equipment and electrical safety standards.
Applications
- Industrial automation systems requiring CC-Link network integration
- Factory communication networks
- Machine control and monitoring via CC-Link
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK FX0-GCC100200 CC-Link Gateway Module is available for immediate purchase, ideal for industrial automation and network communication applications.
