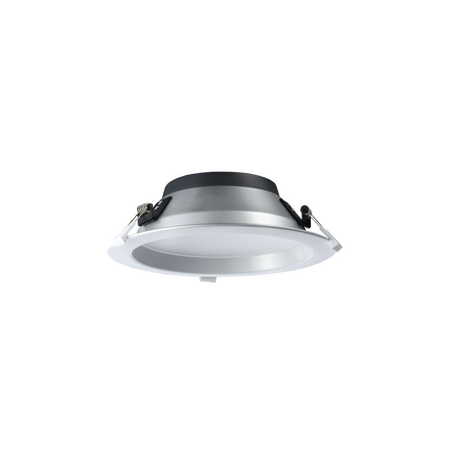

CCT LED Downlight 23/30W | 3000/4000/5700K | IP64 Rated

SKU: S9075TC/WH/DP

$61.30 List price: $81.50

+ −

30 Days Return Delivery Options

CCT LED downlight with 23/30W power and 3000/4000/5700K color temperature—ideal for commercial interiors. Built for flexibility, with a premium aluminium body and stylish white powder coat finish.

Description
Attachments

Product Name/Title: CCT LED Downlight 23/30W | 3000/4000/5700K | IP64 Rated

SKU: S9075TC/WH/DP

Alternatively Known As: CCT LED Ceiling Downlight, Adjustable Color Temperature LED Downlight, IP64 LED Downlight

Technical Specifications

Power: 23W or 30W
Color Temperature: 3000K / 4000K / 5700K
IP Rating: IP64
Body Material: Premium aluminium
Diffuser: Opal polycarbonate
LED Type: High efficiency SMD LED chips
Driver: Remote constant current non-dimmable with flex and plug
CA90 rated
Dimensions (H x L x W): 80mm x 150mm x 150mm
Weight: 1.5 kg

Key Features

Premium aluminium body profile
CA90 rated
Stylish white powder coat finish
Quality opal polycarbonate diffuser
High efficiency SMD LED chips
Remote constant current non-dimmable LED driver with flex and plug

Professional Installation Requirements

Professional installation by a licensed electrician is recommended to ensure compliance with electrical standards and safety.

Applications

Commercial interior spaces requiring flexible power selections

Standards & Compliance

AS/NZS 60598 – Luminaires safety and performance
AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

Energy-efficient LED technology reduces power consumption
Long lifespan reduces waste and replacement frequency

Warranty Information

Standard 3 years warranty against manufacturing defects.

Available Now

The CCT LED Downlight 23/30W with selectable color temperatures and IP64 rating is available now for immediate purchase. Ideal for commercial interior lighting applications.

Installation Sheets (S907X_TC_HP_-_DP_installation_instruction_v1_6.05.2024.pdf, 1,109 Kb) [Download]

Lighting Requirement Calculator

Room Length (m):

Room Width (m):

Room Height (m):
Select Room Type:
Beam Angle (degrees):
Kelvin Rating:
Enter Lumens per Light:

This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
