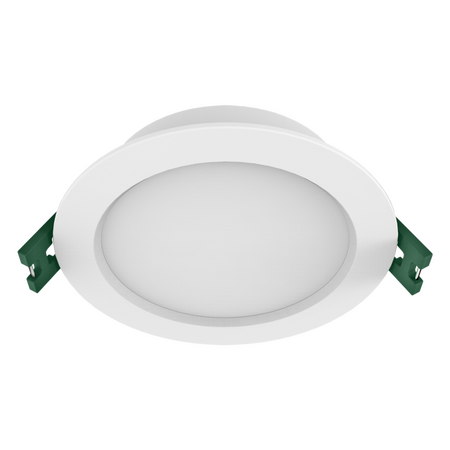

CCT LED Downlight 9W | 3000/4000/5700K | Dimmable IP44
CCT LED downlight with selectable 3000/4000/5700K color temperatures and dimmable functionality—ideal for residential and commercial interiors. Built with a durable die-cast aluminium body and stylish white finish for versatile lighting solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CCT LED Downlight 9W | 3000/4000/5700K | Dimmable IP44
SKU: S9141TC/WH
Alternatively Known As: Adjustable Colour Temperature LED Downlight, Dimmable LED Ceiling Light, IP44 LED Downlight
Technical Specifications
- Power Wattage: 9W
- Colour Temperature: 3000K / 4000K / 5700K selectable via DIP switch
- Body Material: Die-cast aluminium
- Diffuser Material: Opal polycarbonate
- LED Type: High efficiency SMD LED chips
- Dimming: Trailing edge dimmable, optional 1-10V, DALI / DSI
- Ingress Protection: IP44
- IC Rating: IC-4
- Driver: Remote constant current LED driver with flex and plug
- Dimensions (H x L x W): 50mm x 90mm x 90mm
- Weight: 0.3 kg
Key Features
- Easy selectable colour temperature with an inbuilt DIP switch (3000K/4000K/5700K)
- Durable die-cast aluminium body profile
- IC - 4 rated
- Stylish white powder coat finish with optional colour trims available
- Quality opal polycarbonate diffuser
- High efficiency SMD LED chips
- Remote constant current trailing edge dimmable LED driver with flex and plug
- Dimmable with trailing edge dimmer, optional 1-10V, DALI / DSI compatibility
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal performance.
Applications
- Residential interior spaces
- Commercial interior spaces
Standards & Compliance
- AS/NZS 60598 – Luminaires safety and performance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long lifespan reduces waste and replacement frequency
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The CCT LED Downlight 9W is available now for immediate purchase. Ideal for residential and commercial interior lighting applications.
