CCTV Camera Junction Box Weather-Resistant 40 x 120 x 120mm Ness

BRAND: Ness
SKU: 123-402
$75.60 List price: $100.80
+ −
30 Days Return Electricians Unlock Trade Access

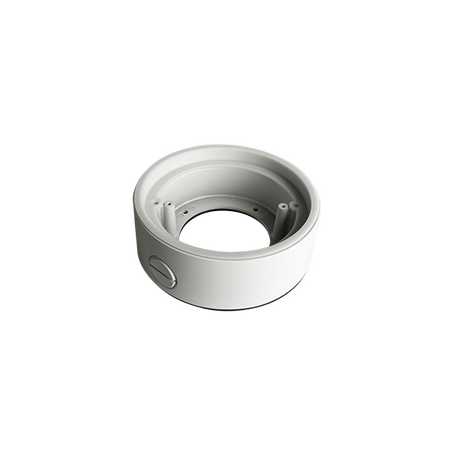

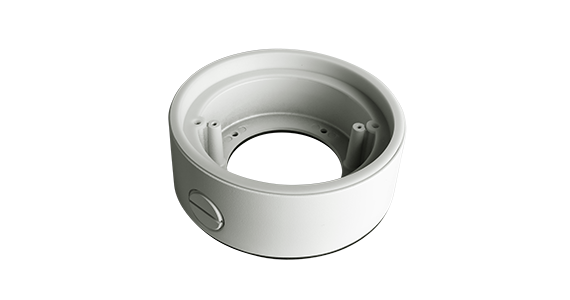

Ness CCTV camera junction box features weather resistance, cable management and 40mm x 120mm x 120mm size. Ideal for CCTV installs.

Alternatively Known As: Digital Watchdog DWC-VFJUNCW Junction Box, CCTV Camera Mounting Junction Box, Vandal Dome Camera Junction Box

Technical Specifications
  • Manufacturer: Digital Watchdog
  • Material: White aluminium alloy
  • Mounting: Wall or ceiling
  • Conduit Entries: Dual 3/4-inch entries, side and front
  • Compatibility: Select MEGApix vandal dome and turret cameras
  • Operating Temperature: -40°C to 60°C
  • Operating Humidity: 10% to 90%
  • Maximum Load Requirement: Mounting surface must support five times the combined camera and bracket weight
  • Included Accessories: Quick-start guide, mounting template, screws, plastic anchors and camera mounting screws
  • Compliance: NDAA compliant
  • Dimensions (H x L x W): 50mm x 144mm x 144mm
  • Weight: 0.5 kg
Key Features
  • Weather-resistant enclosure for indoor and outdoor CCTV installations
  • Protects camera connections from dust, moisture, tampering and wear
  • Conceals and manages camera cabling for a neat installation
  • White spray finish designed to match compatible camera housings
  • Dual conduit entry points provide flexible cable routing
  • Compatible with selected Digital Watchdog MEGApix vandal dome and turret cameras
Applications
  • Indoor CCTV camera installations
  • Outdoor CCTV camera installations
  • Commercial and industrial surveillance systems
  • Residential security camera installations
  • Wall- or ceiling-mounted vandal dome and turret cameras
Environmental Benefits
  • Aluminium construction is recyclable at the end of the product life
  • Protects camera connections from weather and physical damage, helping extend equipment service life
  • Passive accessory requiring no operational power
Warranty Information

1-year manufacturer’s warranty. Warranty claims are subject to the applicable Digital Watchdog or Ness warranty terms.

Available Now

Available through Ness and authorised Australian security equipment distributors.
