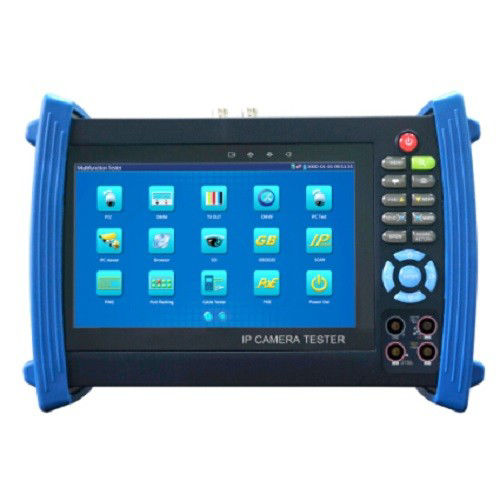

CCTV Test Monitor 7 Inch Capacitive Touch WiFi Ness
Ness CCTV test monitor features a 7 Inch capacitive touch screen, multi-protocol support and WiFi. Ideal for CCTV camera installation and commissioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 7-Inch IP Camera Tester, CCTV Professional Test Monitor, Multi-Format CCTV Tester
Technical Specifications
- Model: M-IPC-600F
- Display: 7-inch IPS capacitive touchscreen
- Display Resolution: 1920 x 1200 pixels
- Signal Systems: NTSC/PAL auto-selecting
- IP Camera Support: 4K, H.264, H.265, ONVIF and ONVIF PTZ
- Analogue HD Support: 5MP TVI, 4MP CVI, 4MP AHD and HD-SDI/EX-SDI
- Network Interface: 10/100M auto-adjusting RJ45
- WiFi: Built-in WiFi, up to 150 Mbps, with hotspot function
- PoE Output: 24 W to IP cameras
- Camera Power Output: 12 V DC, 2 A
- Video Connections: 1-channel BNC input and 1-channel BNC loop output
- HDMI: HDMI signal output supporting up to 1080p
- Multimeter: Voltage, current, resistance, capacitance, continuity and diode testing
- Battery: 7.4 V DC, 5000 mAh lithium-ion polymer
- Battery Runtime: Approximately 10 hours after a 6-hour charge
- Storage: 8 GB Micro SD card included; supports up to 32 GB
- Power Supply: 5 V DC, 2 A input
- Dimensions (H x L x W): 44mm x 240mm x 158mm
- Weight: 1 kg
Key Features
- Tests IP cameras using ONVIF, ONVIF PTZ, H.264 and H.265 protocols
- Supports analogue, TVI, CVI, AHD, HD-SDI and EX-SDI camera formats
- Built-in WiFi for wireless camera viewing, network testing and hotspot operation
- 24 W PoE output for powering and testing IP cameras
- Integrated digital multimeter and PoE voltage tester
- Supports PTZ control, RS485 communication and more than 30 PTZ protocols
- Includes cable testing, RJ45/TDR testing, IP scanning, ping testing and port finding
- Records and plays back video, captures snapshots and provides 4x image zoom
- Built-in LED lamp for low-light installation work
- Rechargeable battery supports portable commissioning and troubleshooting
Applications
- CCTV camera installation and commissioning
- IP camera configuration and network troubleshooting
- Analogue HD camera testing for TVI, CVI, AHD and SDI systems
- PoE voltage, power and network link testing
- PTZ camera control and RS485 communication testing
- UTP, RJ45 and coaxial cable verification
- CCTV system fault-finding and service work
Standards & Compliance
- AS 61010.1: Safety requirements for electrical equipment for measurement, control and laboratory use; product-specific conformity was not verified
Environmental Benefits
- Rechargeable lithium-ion polymer battery reduces reliance on disposable batteries
- Combines camera testing, network diagnostics, cable testing and multimeter functions in one device, reducing the need for multiple tools
- Durable portable equipment can support repeated service use and reduce replacement waste
Warranty Information
3 years from date of purchase under Ness Corporation’s general warranty for Ness manufactured or supplied products, subject to the published warranty terms.
Available Now
Available through Ness Corporation and authorised Australian security equipment distributors.
