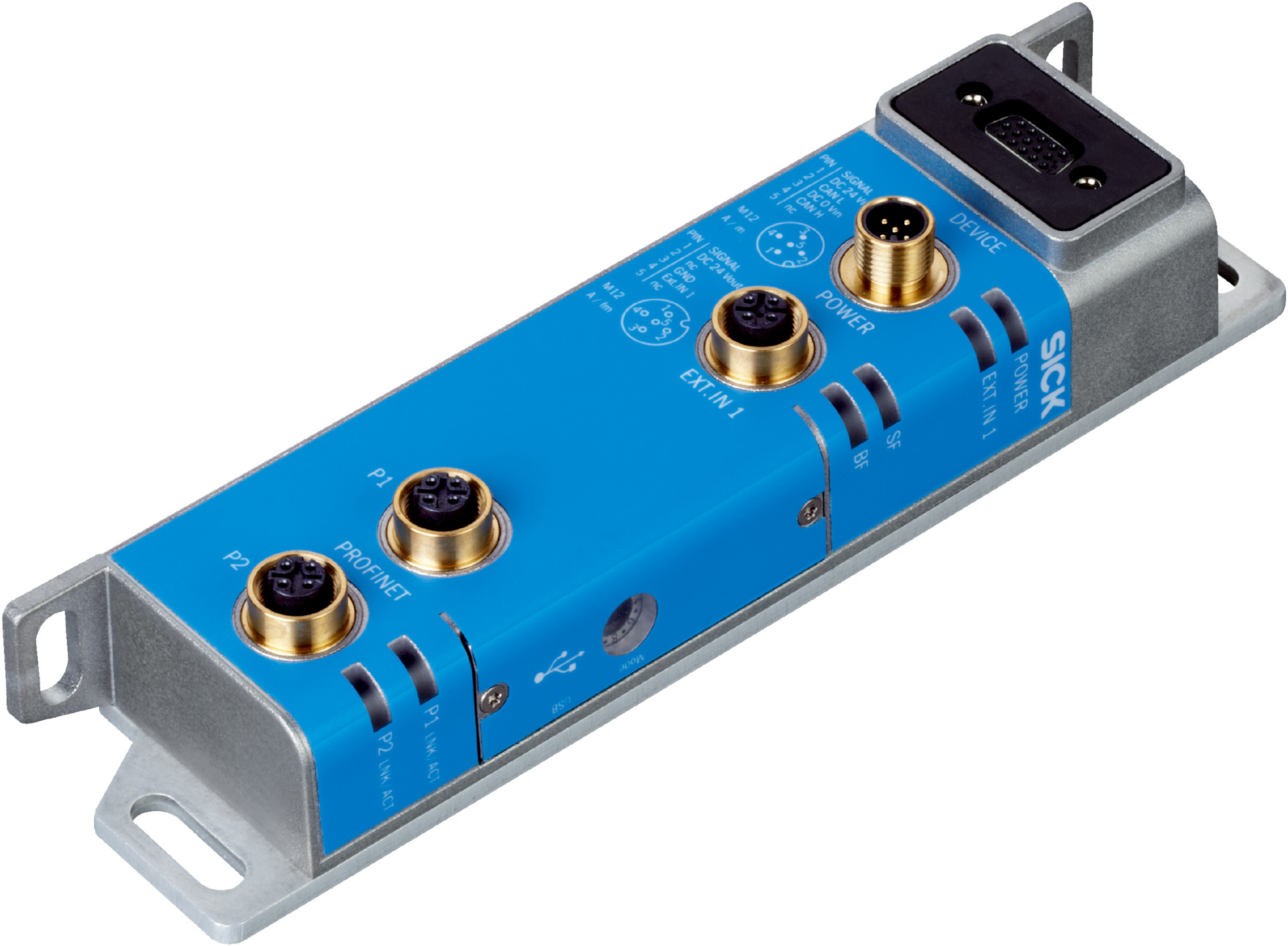

CDF600-2200 RFID Reader Module | Integrated Cloning Support | IP65 Enclosure | by SICK
The CDF600-2200 RFID Reader Module is designed for industrial automation, supporting Lector series CLV61x - CLV65x CLV69x RFID devices. With integrated cloning module support and a robust IP65 aluminum housing, it ensures reliable performance in demanding environments. Ideal for data acquisition and communication, this device is perfect for manufacturing and mobile handheld scanner integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supported products: Lector series CLV61x - CLV65x CLV69x RFID read/write device, Mobile handheld scanners
- Cloning module support (CMC): Integrated
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: Less than 5 W when no sensor or digital input connected
- Housing: Aluminum (unpainted)
- Enclosure rating: IP65
- Protection class: III
- Scanner connection: RS-232
- Interfaces: PROFINET dual port, RS-232, CAN
- Data transmission rate: 57.6 kBaud for serial interface, 100 MBit/s for Ethernet
- Digital inputs: 1
- Digital outputs: 0
- Optical indicators: 6 LEDs
- Configuration software: SOPAS ET
- Operating temperature range: -35 °C to +50 °C
- Storage temperature range: -35 °C to +70 °C
- Permissible relative humidity: Less than 90%, non-condensing
- Electromagnetic compatibility: EN 61000-6-3/A1:2011-03 / EN 61000-6-2:2005-08
- Vibration resistance: EN 60068-2-6:2008-02
- Shock resistance: EN 60068-2-27:2009-05
- Dimensions (H x L x W): 40.7mm x 207mm x 49.5mm
- Weight: 0.361 kg
Key Features
- Supports Lector series CLV61x - CLV65x CLV69x RFID read/write devices
- Integrated cloning module support (CMC)
- Supply voltage range from 10 V DC to 30 V DC
- Low power consumption under 5 W when idle
- Robust aluminum housing with IP65 enclosure rating
- Multiple interface support including PROFINET, RS-232, CAN
- Equipped with 6 optical LED indicators
- Compatible with SOPAS ET configuration software
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial communication interfaces and electrical safety standards.
Applications
- Industrial automation for barcode and RFID scanning
- Mobile handheld scanner integration
- Data acquisition and communication in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP65 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CDF600-2200 - V2.x, NetX51 RFID Read/Write Device is available for immediate purchase, ideal for industrial automation and scanning applications.
