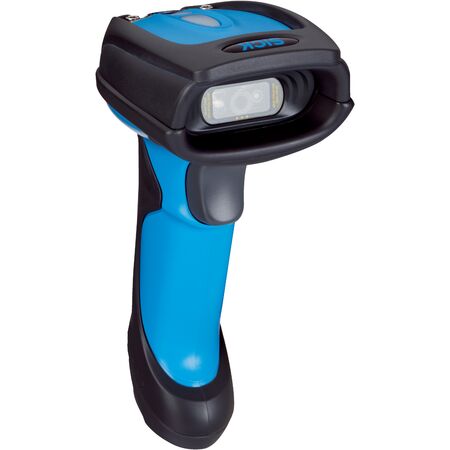

CDF600 EtherCAT Set | Wireless Handheld Barcode Scanner | 1280 px Resolution | IP65 Rated | by SICK
The CDF600 EtherCAT Set is a wireless handheld barcode scanner designed for industrial applications, featuring a high sensor resolution of 1280 px x 800 px and an impressive reading distance of 30 mm to 400 mm. With its IP65 rated housing, it ensures durability in harsh environments, making it perfect for manufacturing and logistics operations that require reliable barcode reading and integration into EtherCAT networks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: Red LED 660 nm
- Alignment aid: Red laser 630 nm, Class 1 laser
- Reading distance: 30 mm to 400 mm
- Code resolution: ≥ 0.07 mm (1D), ≥ 0.13 mm (2D)
- Supply voltage: 5 V DC ± 5%
- Current consumption: 750 mA operation, 175 mA standby
- Enclosure rating: IP65
- Weight: 208 g including UltraCap™ battery
- MTBF: 100,000 hours
- Readable codes: 1D, 2D, stacked codes including Code 39, QR, Data Matrix, PDF417, and more
- Battery power: Over 4,200 scans per full charge
- Code buffer: 5,000 codes in batch mode, 100,000 codes for out of range scanning
- Interfaces: EtherCAT, PROFINET, PROFIBUS DP, Ethernet TCP/IP, Serial RS-232, USB, Bluetooth V4.0
- Shock resistance: 50 drops from 2 m on concrete
- Operating temperature: -20°C to +50°C
- Storage temperature: -40°C to +70°C
- Relative humidity: 95% non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.208 kg
Key Features
- Wireless cable-free handheld scanner with UltraCap™ supercapacitor
- Supports 1D, 2D, and stacked barcode types
- Reading distance from 30 mm to 400 mm
- IP65 rated housing for dust and water resistance
- Bluetooth V4.0 wireless operating range up to 100 m
- Multiple interface options including EtherCAT, PROFINET, PROFIBUS DP, USB, Serial RS-232
- High sensor resolution of 1280 px x 800 px
- Laser alignment aid with class 1 laser safety
- Battery supports over 4,200 scans when fully charged
- Shock resistant to 50 drops from 2 m height
Professional Installation Requirements
- Professional installation recommended to ensure proper integration with EtherCAT networks and configuration using IDM Setup Tool.
Applications
- Industrial applications requiring reliable barcode reading
- Integration into EtherCAT networks
- Wireless barcode scanning in manufacturing and logistics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Wireless operation reduces cable waste and clutter
- UltraCap™ supercapacitor battery reduces chemical battery waste
- Durable IP65 housing extends product lifespan reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IDM261E-411S CDF600 EtherCAT Set is available for immediate purchase, ideal for industrial barcode scanning and network integration applications.
