'Cedar 38W Round Shoplighter 3CCT 165-185mm Cutout White Haneco'

BRAND: Haneco
SKU: CEDAR-RND-TRI
$160.60 List price: $214.10
+ −
30 Days Return Electricians Unlock Trade Access

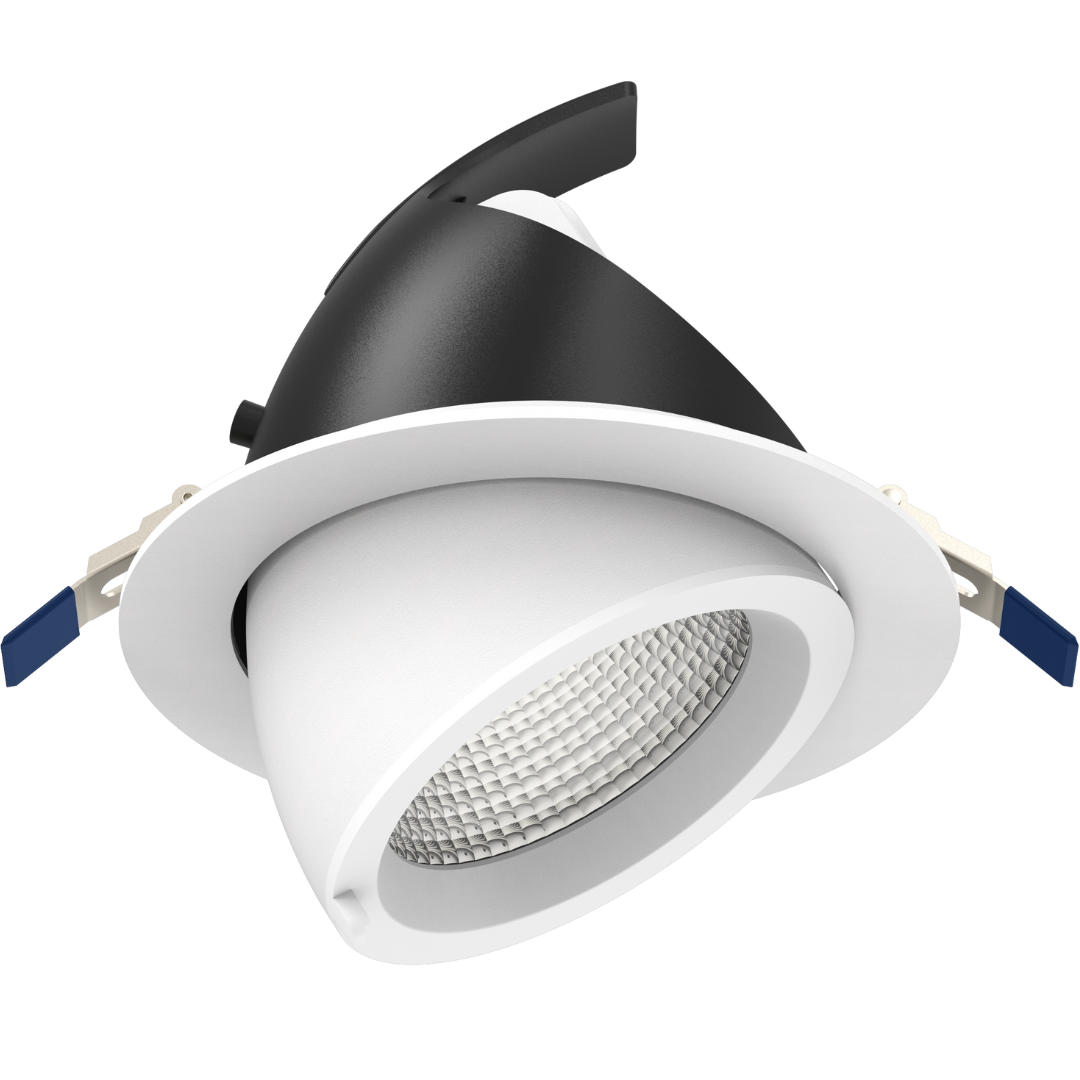

'Haneco Cedar LED shoplighter features 38W output, 3CCT selection and 165-185mm cutout in white round design. Ideal for retail display lighting.'

Alternatively Known As: Haneco Cedar Round Shoplight, Cedar Commercial LED Downlight, Adjustable LED Shoplighter

Technical Specifications
  • Power: 38 W
  • Lumen Output: 3419 lm at 3000K; 3793 lm at 4000K; 3462 lm at 5000K
  • Colour Temperature: 3000K / 4000K / 5000K selectable
  • Efficacy: 93 / 108 / 96 lm/W at 3000K / 4000K / 5000K
  • Beam Angle: 36°
  • Adjustable Angle: 0–38°
  • Colour Rendering Index: >80
  • Input Voltage: 220–240 V AC, 50/60 Hz
  • Power Factor: >0.9
  • Dimming: Non-dimmable
  • Driver: Remote driver
  • Connection: 1.5 m flex and plug
  • Ingress Protection: IP20
  • Insulation Rating: Do not cover; non-IC
  • Electrical Classification: Class II
  • Body Material: Aluminium
  • Diffuser Material: Polycarbonate
  • Operating Temperature: -20°C to 45°C
  • Projected Life: >54,000 hours at Ta45°C, L70
  • Smart Compatibility: KASTA compatible
  • Product Code: CEDAR-RND-TRI
  • SAP Code: 2002341
  • Dimensions (H x L x W): 149mm x 200mm x 200mm
  • Weight: 1.005 kg
Key Features
  • Selectable 3000K, 4000K and 5000K colour temperatures
  • Adjustable round recessed shoplight for accent and feature lighting
  • Multifaceted reflector technology for controlled beam distribution
  • Flicker-free LED performance
  • White aluminium housing with polycarbonate diffuser
  • Remote driver supplied with flex and plug
  • Suitable for retail spaces, showrooms, restaurants, cafés and hospitality areas
  • Overload and short-circuit protection
  • Designed for a nominal 180 mm ceiling cutout; earlier Cedar 38W variants may specify a 165–185 mm cutout range
Professional Installation Requirements
  • Mains-connected recessed luminaire installation should be performed by a licensed electrician in accordance with the manufacturer's installation instructions and applicable electrical installation requirements. The fitting is non-IC and must not be covered or abutted by insulation.
Applications
  • Retail display and feature lighting
  • Showrooms and commercial interiors
  • Restaurants, cafés and hospitality venues
  • Cocktail lounges and food courts
  • Hotel common areas
  • Medical facilities
Standards & Compliance
  • AS/NZS 60598.1 for general luminaire safety requirements
  • AS/NZS 60598.2.2 for recessed luminaires
  • Installation in accordance with AS/NZS 3000 wiring requirements
Environmental Benefits
  • LED technology provides substantially lower energy consumption than equivalent conventional lighting sources
  • Projected service life exceeding 54,000 hours can reduce replacement frequency and associated waste
  • Aluminium housing is a recyclable material
  • Flicker-free, high-efficacy operation supports efficient commercial lighting design
Warranty Information

5-year direct replacement warranty against manufacturing defects, subject to Haneco warranty terms. Warranty claims require proof of purchase and installation by an authorised electrician; removal and reinstallation labour is generally excluded unless otherwise agreed.

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.
