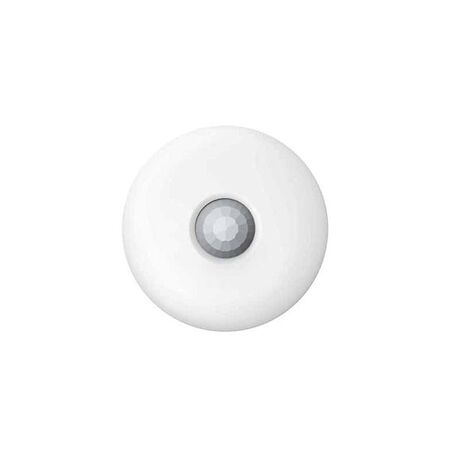

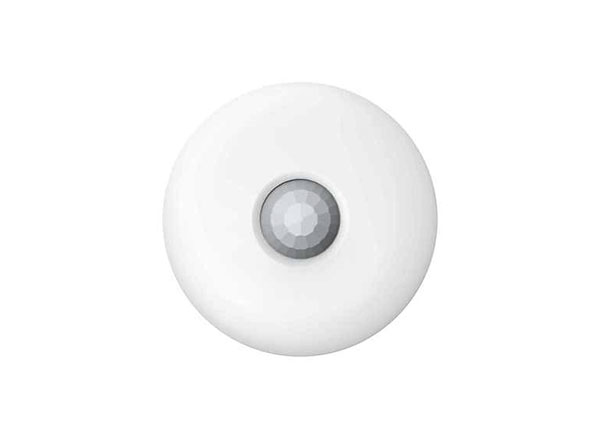

Ceiling Dual-Tech Detector Hikvision
Hikvision ceiling dual-tech detector features dual-tech sensing and ceiling mounting. Ideal for Hikvision alarm system installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Wired dual-technology ceiling detector, 360° PIR and microwave detector, ceiling-mounted intrusion detector
Technical Specifications
- Detection Method: Passive infrared and microwave
- Detection Range: 12 m
- Detection Angle: 360°
- Detection Zones: 172
- Detectable Speed: 0.3–2 m/s
- Microwave Frequency: 24 GHz, 24.15–24.25 GHz
- Sensitivity: Automatic or low
- White Light Filter: 6500 lux
- Power Supply: 9–16 VDC
- Typical Voltage: 12 VDC
- Maximum Power Consumption: 100 mA
- Operating Temperature: -10°C to 55°C
- Storage Temperature: -20°C to 60°C
- Operating Humidity: 10–90% RH
- Mounting Height: 2.4–4 m
- Tamper Protection: Front
- LED Indicators: Green PIR, red microwave, blue alarm
- Security Classification: EN 50131-2-4:2020, Security Grade 2, Environment Class II
- Dimensions (H x L x W): 33.2mm x 120mm x 120mm
- Weight: 0.138 kg
Key Features
- Combines digital quad-element PIR sensing with 24 GHz smart microwave detection
- 360° ceiling coverage with a 12 m detection range
- Automatic sensitivity adjustment helps reduce nuisance alarms
- Digital temperature compensation for stable detection performance
- Creep-zone protection and sealed optics
- Wide 9–16 VDC operating range
- On-board selectable end-of-line resistor support
- Indoor ceiling mounting for Hikvision wired alarm installations
Professional Installation Requirements
- Installation, wiring, commissioning and maintenance should be performed by a suitably qualified security or electrical installer in accordance with the manufacturer’s instructions and applicable Australian requirements. Use a compliant 12 VDC power supply and configure alarm and tamper end-of-line wiring as required by the control panel.
Applications
- Indoor residential alarm systems
- Commercial security and intrusion alarm systems
- Office, retail and light-industrial premises
- Ceiling-mounted motion detection in open indoor areas
- Hikvision wired alarm system installations
Standards & Compliance
- AS/NZS 2201.1:2007 for the design, installation, commissioning and maintenance of intruder alarm systems at client premises
Environmental Benefits
- Low-voltage 9–16 VDC operation supports efficient alarm-system power consumption
- Digital temperature compensation and dual-technology sensing can reduce nuisance alarms, unnecessary call-outs and associated transport impacts
- Sealed optics and durable electronic construction support extended service life and reduced replacement waste
Warranty Information
36-month Hikvision manufacturer warranty for wired detectors and authorised Australian-market products, subject to the applicable Hikvision warranty terms and purchase through an authorised distribution channel.
Available Now
Available through Hikvision and authorised Australian security distributors, subject to distributor stock levels.
