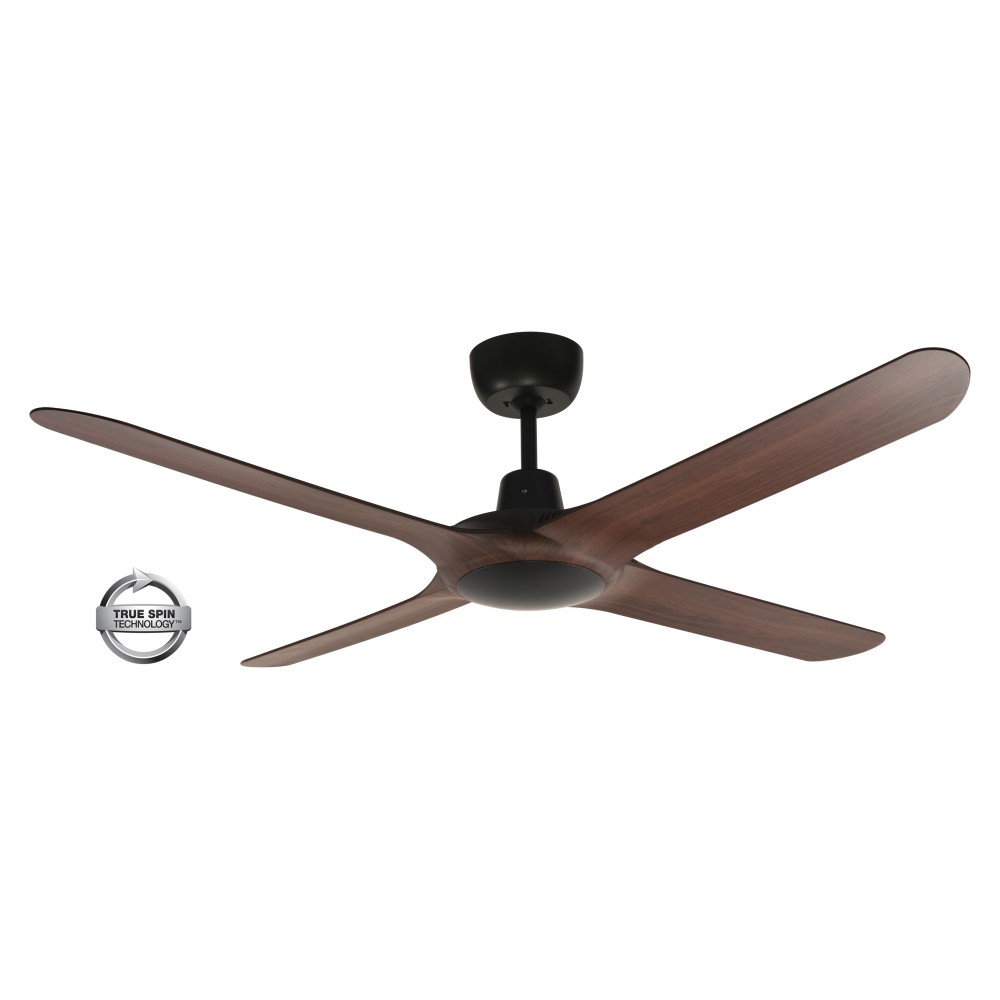

Ceiling Fan 1400mm 4 Blade PC Composite Coastal Walnut Ventair
Ventair Spyda 1400mm 4-blade fully moulded PC composite ceiling fan for indoor, outdoor and coastal use. Not light adaptable. Walnut finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Spyda SPY1424WN, Ventair Spyda 56-inch Ceiling Fan, Ventair Spyda 4-Blade AC Ceiling Fan
Technical Specifications
- Model: SPY1424WN
- Sweep Diameter: 1400mm
- Blade Count: 4
- Blade Material: Fully moulded polycarbonate composite
- Finish: Coastal walnut
- Motor Type: AC with True Spin Technology
- Motor Power: 68W high, 22W medium, 13W low
- Air Movement: 13,980m³/h high, 10,560m³/h medium, 6,300m³/h low
- Fan Speed: 220rpm high, 140rpm medium, 100rpm low
- Supply: 220-240V AC, 50Hz
- Controller: Three-speed wall controller included
- Remote Control: Compatible with optional SPYRFR5056 remote
- Reverse Function: Yes
- Mount Angle: 0-18 degrees
- Light Adaptable: No
- Minimum Blade Height Above Floor: 2.1m
- Dimensions (H x L x W): 330mm x 1400mm x 1400mm
- Weight: 6.2 kg
Key Features
- Four fully moulded polycarbonate composite blades in a coastal walnut finish
- Durable corrosion-resistant and UV-protected components for indoor and covered outdoor use
- True Spin Technology motor housing helps minimise vibration and balancing requirements
- Three-speed operation with wall controller included
- Reversible airflow for summer and winter operation
- Low-noise operation suitable for bedrooms and living areas
- Suitable for residential, light commercial and covered coastal applications
- Quick-connect wiring and quick-fix assembly
- Optional remote control and extension rods available
Professional Installation Requirements
- Installation must be performed by a qualified and licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. The mounting structure must support at least four times the fan's net weight, and suitable all-pole isolation must be provided.
Applications
- Residential living rooms, bedrooms and open-plan areas
- Covered patios, verandas and alfresco areas
- Coastal homes in suitably covered and protected locations
- Light commercial indoor and covered outdoor areas
Standards & Compliance
- AS/NZS 60335.2.80 for household and similar electric fan safety requirements
- AS/NZS 3000 Australian/New Zealand Wiring Rules for electrical installation
Environmental Benefits
- Low-speed operation uses approximately 13W, helping reduce electricity consumption when maximum airflow is not required
- Durable polycarbonate composite blades resist moisture-related deterioration and can support a longer service life
- Efficient air circulation may reduce reliance on air conditioning in suitable conditions
- Long service life can reduce replacement frequency and associated material waste
Warranty Information
Six-year limited warranty comprising two years of in-home warranty followed by four years covering motor replacement, subject to Ventair warranty terms and correct installation. Commercial use is covered for one year.
Available Now
Available through authorised Ventair distributors in Australia.
