Ceiling Fan 900mm 3 Blade B22 Lamp Holder Black Ventair

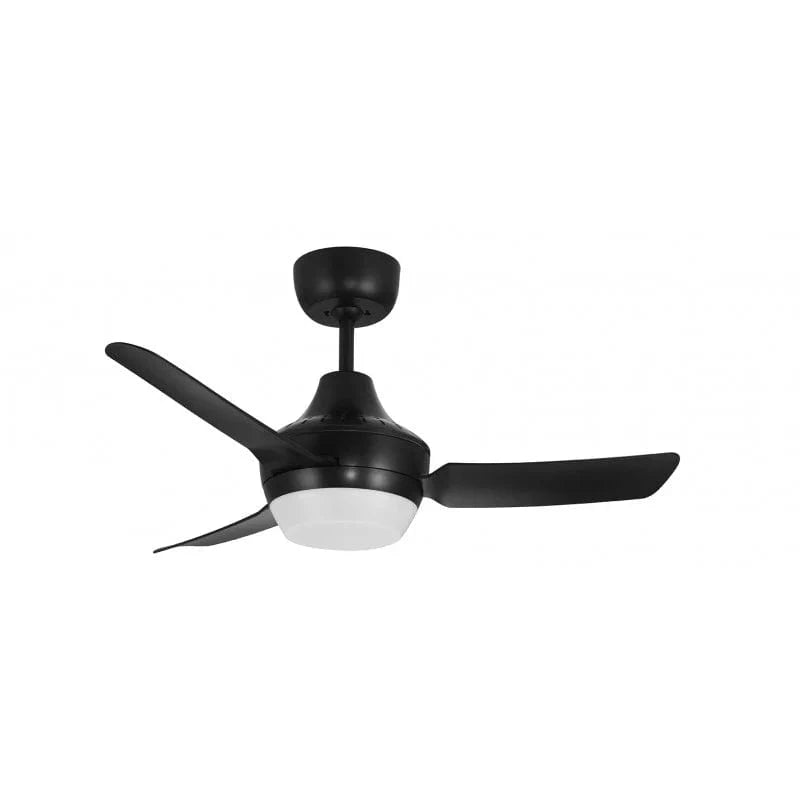

Ventair Stanza 900mm 3-blade ceiling fan with B22 lamp holder for indoor and covered outdoor areas. Black finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Stanza 36-inch Ceiling Fan, STA903BL-L, Black Ceiling Fan with B22 Lamp Holders
Technical Specifications
- Model Number: STA903BL-L
- Motor Type: AC True-spin motor
- Motor Power: 11/18/45 W
- Air Movement: 3,570/4,920/7,200 m³/h
- Speed: 160/190/260 RPM low/medium/high
- Blade Count: 3
- Blade Material: Glass fibre composite
- Blade Pitch: High, curved blade
- Light Fitting: Acrylic light with 2 x B22 lamp holders
- Maximum Lamp Rating: 2 x 7 W, 14 W total
- Input: 220–240 V AC, 50 Hz
- Mount Angle: 0–18°
- Reverse Mode: No
- Remote Compatibility: SSRFR36
- Controller: Three-speed wall controller included
- Ingress Protection: Indoor and fully covered outdoor use only
- Dimensions (H x L x W): 399mm x 900mm x 900mm
- Weight: 4.4 kg
Key Features
- True-spin Technology motor design for efficient, reliable operation
- Individually balance tested and quality checked
- Precision-moulded glass fibre composite blades for stability and airflow
- ECO mode supports lower-speed operation and gentle winter heat circulation
- Two B22 lamp holders with globes not included
- Suitable for indoor and protected outdoor areas
- Compatible with the optional SSRFR36 RF remote control
- Matte black finish
- Quick-connect installation system
Professional Installation Requirements
- Installation must be completed by a licensed electrician in accordance with the supplied instructions and AS/NZS 3000 wiring requirements. An all-pole disconnection switch must be incorporated into the fixed wiring.
Applications
- Bedrooms and living areas
- Small indoor residential rooms
- Covered patios, verandahs and alfresco areas
- Small commercial or light-duty indoor spaces
Standards & Compliance
- AS/NZS 60335.2.80 for the safety of household and similar electric fans
- AS/NZS 3000 for electrical installation and wiring requirements
Environmental Benefits
- ECO mode and three-speed operation allow airflow and energy use to be matched to room requirements
- Durable glass fibre composite blades can extend service life and reduce replacement waste
- Efficient airflow helps provide room circulation with relatively low motor power
- Long-life construction may reduce material consumption associated with frequent replacement
Warranty Information
Four-year warranty against manufacturing defects, consisting of two years in-home warranty followed by two years parts-only warranty. Commercial use is covered for a maximum of one year. Remote control components are covered for one year, where applicable.
Available Now
Available through authorised Ventair distributors in Australia.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
