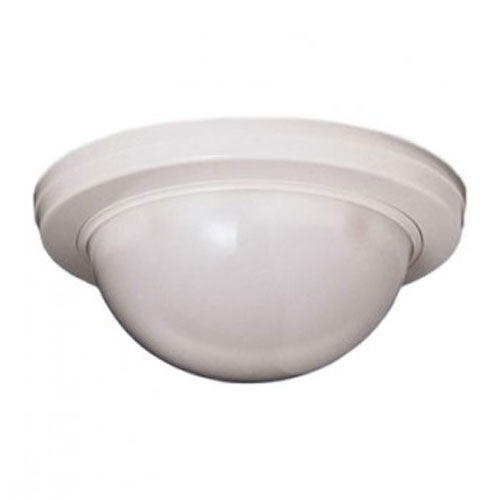

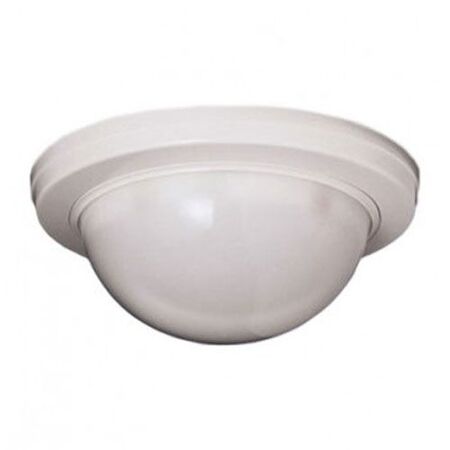

Ceiling Mount 360 Degree PIR Sensor 18m Coverage Ness
Ness ceiling mount PIR sensor features 360 Degree detection, 18m coverage and selectable output. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ceiling PIR Motion Detector, 360-Degree Intruder Alarm PIR, Takex PA-6810E
Technical Specifications
- Model: Takex PA-6810E
- Detection Type: Passive infrared, dual-element pyro
- Coverage: 18m diameter as listed by Ness; Takex datasheet specifies 15.2m maximum diameter
- Detection Angle: 360° round coverage
- Mounting Height: Up to 5m; 4.9m maximum in Takex datasheet
- Supply Voltage: 7–28V DC, non-polarity
- Current Consumption: 11mA maximum, plus 2mA when LED control is used
- Alarm Output: Dry semiconductor contact with selectable N/C or N/O changeover
- Alarm Output Rating: 24V AC/DC, 0.25A with protective resistor
- Pulse Count: Selectable 1, 2, 3 or 4 triggers
- Sensitivity: Adjustable across four settings: 60%, 80%, 100% and 120%
- Alarm Reset: Approximately 2 seconds
- Operating Temperature: -15°C to +55°C, non-condensing
- Installation Location: Indoor ceiling; optional wall mounting with BCW-401 bracket
- Material: Resin body and cover
- Weight: 110g
- Source Verification: Ness identifies SKU 106-217 as Takex PA-6810E; Takex manufacturer datasheet used for electrical and physical specifications. ([ness.com.au](https://ness.com.au/106-217))
- Dimensions (H x L x W): 47mm x 120mm x 120mm
- Weight: 0.11 kg
Key Features
- 360° ceiling-mounted PIR detection for indoor security systems
- Selectable normally open or normally closed alarm output
- Adjustable pulse count and sensitivity for installation flexibility
- Non-polarity DC supply connection
- Remote LED control capability
- Detachable snap-in sensor and base design for easier installation and maintenance
- Selectable alarm memory operation
- Optional BCW-401 bracket allows wall or ceiling mounting
- Low current consumption suitable for alarm control-panel applications
- High RF and electrical-noise immunity design. ([ness.com.au](https://ness.com.au/106-217))
Professional Installation Requirements
- Installation, wiring, walk testing and alarm-system commissioning should be completed by a suitably qualified security or electrical technician. Install indoors and configure the detector as part of an intruder alarm system in accordance with AS/NZS 2201.1:2007. ([hsenode.com](https://www.hsenode.com/NewSamples/AS/175861213/AS-NZS-2201.1-2007-1.pdf?utm_source=openai))
Applications
- Residential intruder alarm systems
- Commercial security alarm systems
- Offices, retail premises and hospitality areas
- Indoor rooms, corridors and open spaces requiring 360° motion detection
- Replacement or expansion of compatible hardwired alarm PIR zones
Standards & Compliance
- Applicable installation standard: AS/NZS 2201.1:2007 for intruder alarm system design, installation, commissioning and maintenance; specific product certification was not stated in the available manufacturer documentation. ([hsenode.com](https://www.hsenode.com/NewSamples/AS/175861213/AS-NZS-2201.1-2007-1.pdf?utm_source=openai))
Environmental Benefits
- Low 11mA maximum current consumption can reduce standby energy use within the alarm system
- Durable replaceable detector design and detachable base can support servicing without replacing the complete mounting assembly
- Long service life can reduce replacement frequency and associated electronic waste
Warranty Information
Ness Corporation’s general warranty for Ness manufactured or supplied products is 3 years from the date of purchase, subject to the stated warranty conditions. ([ness.com.au](https://ness.com.au/product-warranty?utm_source=openai))
Available Now
Available through Ness Corporation and authorised Australian security and electrical distributors; live stock status should be confirmed with the supplier. ([ness.com.au](https://ness.com.au/106-217))
