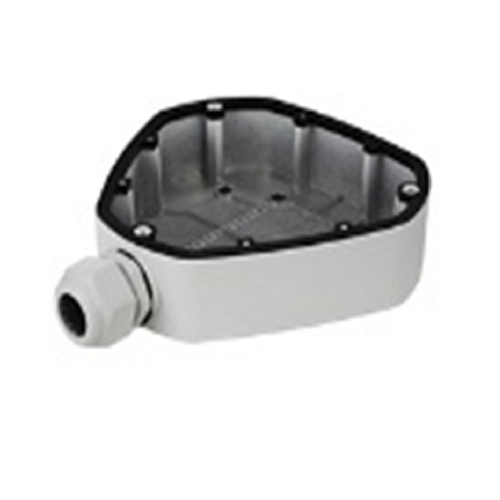

Ceiling Mount Junction Box DS-1280ZJ-DM25 Hikvision

BRAND: Ness
SKU: 104-783
$25.80 List price: $34.40
+ −
30 Days Return Electricians Unlock Trade Access
Hikvision ceiling mount junction box, model DS-1280ZJ-DM25. Ideal for CCTV installs.

Alternatively Known As: Hikvision Dome Camera Junction Box, Hikvision Fisheye Camera Mounting Box, CCTV Camera Junction Box

Technical Specifications
  • Product Type: Junction box for dome and fisheye cameras
  • Material: Aluminium alloy
  • Finish: Hikvision white spray treatment
  • Maximum Load Capacity: 4.5 kg
  • Installation Surface: Flat wall or ceiling surface
  • Outdoor Installation: Waterproof rubber required
  • Mounting Requirement: Supporting surface should carry at least three times the combined camera and junction box weight
  • Dimensions (H x L x W): 178.5mm x 164mm x 41mm
  • Weight: 0.34 kg
Key Features
  • Designed for compatible Hikvision dome and fisheye CCTV cameras
  • Suitable for ceiling and wall mounting applications
  • Aluminium alloy construction for strength and durability
  • Low-profile 41 mm depth
  • Integrated cable outlet for tidier cable routing
  • Waterproof design when correctly installed with the required sealing components
  • White finish to match compatible Hikvision camera equipment
Applications
  • Ceiling-mounted CCTV camera installations
  • Wall-mounted dome and fisheye camera installations
  • Commercial security surveillance systems
  • Residential CCTV systems
  • Industrial and institutional camera installations
Environmental Benefits
  • Aluminium alloy is highly recyclable at end of service life
  • Durable metal construction can support extended product service life and reduce replacement waste
  • Low-profile passive accessory requires no electrical power during operation
Warranty Information

Warranty is subject to Hikvision Australia’s applicable terms and the authorised distribution channel. Hikvision’s published five-year warranty programme is limited to specified premium project-oriented product series and does not specifically identify this junction box.

Available Now

Available through Hikvision and authorised Australian security, CCTV and electrical distribution channels.
