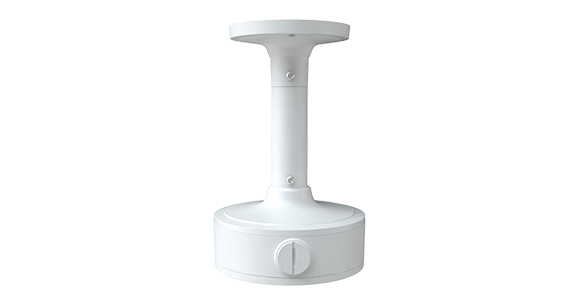

Ceiling Mount with Junction Box Heavy-Duty to Suit VF Cameras Ness
Ness ceiling mount with junction box features heavy-duty metal and corrosion resistance. Ideal for VF camera CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DWC-MT9CMJ2 Ceiling Mount with Junction Box, Digital Watchdog VF Turret Camera Ceiling Mount, CCTV Camera Ceiling Mount Bracket
Technical Specifications
- Model: DWC-MT9CMJ2
- Material: Aluminium alloy with protective finish
- Colour: White
- Camera Compatibility: Selected Digital Watchdog T9 vari-focal turret cameras
- Mounting Type: Ceiling mount
- Conduit Entries: Side and front 3/4 inch entries
- Environment: Indoor and outdoor use
- Working Temperature: -40°C to 60°C
- Working Humidity: 10% to 90% relative humidity
- Maximum Load Requirement: Mounting surface must support five times the combined weight of the camera and bracket
- Compliance Marking: NDAA compliant
- Included Accessories: Mounting template, screws, plastic anchors, camera mounting screws, waterproof O-ring and junction box connector screws
- Dimensions (H x L x W): 50mm x 194.4mm x 155.3mm
- Weight: 1.048 kg
Key Features
- Heavy-duty aluminium alloy construction
- Integrated junction box for cable management and connection protection
- Designed for selected vari-focal T9 turret cameras
- Side and front 3/4 inch conduit entries support flexible cable routing
- Suitable for indoor and outdoor CCTV installations
- Suitable for installations requiring extended camera height from the ceiling
- White finish for discreet commercial and residential installations
- Supplied with mounting hardware and waterproof sealing components
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or CCTV installer. Ensure the ceiling structure and mounting surface can support at least five times the combined weight of the camera and bracket, and route cables in accordance with applicable electrical and building requirements.
Applications
- Ceiling mounting Digital Watchdog VF vari-focal turret cameras
- Commercial and industrial CCTV installations
- Retail, warehouse and office surveillance systems
- Indoor and outdoor security camera installations
- High-ceiling camera installations requiring concealed cable storage
Standards & Compliance
- AS/NZS 62676.4:2020 is relevant to the selection, planning, installation, commissioning and maintenance of the associated video surveillance system; no product-specific AS/NZS conformity claim is stated by the manufacturer.
Environmental Benefits
- Aluminium alloy construction is recyclable at end of service life
- Protective finish and corrosion resistance can extend service life and reduce replacement waste
- Integrated cable management helps protect connected equipment from environmental exposure
Warranty Information
1-year manufacturer warranty as specified for the Digital Watchdog DWC-MT9CMJ2.
Available Now
Available through Ness and authorised Australian security and CCTV distributors.
