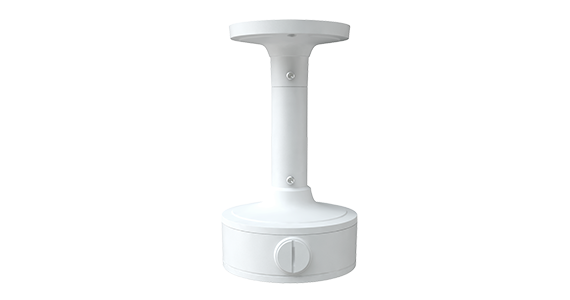

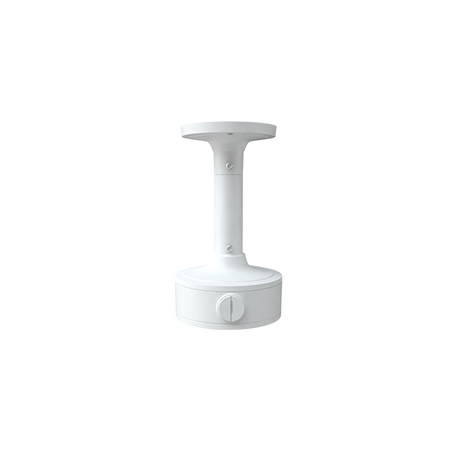

Ceiling Mount with Junction Box to Suit MT9 Turrets Powder-Coated Ness
Ness ceiling mount with junction box features powder-coated metal and internal cable management. Ideal for MT9 turret CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness MT9 Turret Ceiling Mount, Digital Watchdog DWC-MT9CMJ, MT9 Turret Camera Ceiling Bracket
Technical Specifications
- Compatibility: Digital Watchdog MT9 series fixed-lens turret cameras
- Material: Aluminium alloy with white powder-coated finish
- Mounting Type: Ceiling mount with integrated junction box
- Cable Entry: Dual 3/4-inch conduit entrances
- Cable Management: Internal storage and routing for camera cables
- Installation Environment: Indoor and outdoor use
- Working Temperature: -40°C to 60°C
- Working Humidity: 10% to 90% RH
- Included Hardware: Mounting screws, anchors, camera screws, waterproof rings, cable gland and mounting templates
- Warranty: 1 year manufacturer warranty
- Dimensions (H x L x W): 194.9mm x 171.6mm x 139.3mm
- Weight: 0.947 kg
Key Features
- Designed specifically for MT9 series fixed-lens turret cameras
- Integrated ceiling bracket and junction box in one assembly
- Conceals and protects camera wiring and connections
- Internal cable management provides a clean installation
- White powder-coated aluminium alloy construction
- Dual conduit entrances support flexible cable routing
- Suitable for high-ceiling installations
- Includes mounting hardware and waterproofing accessories
Professional Installation Requirements
- Installation should be performed by a qualified security technician or electrician to ensure secure fixing, suitable cable routing and compliance with applicable local requirements.
Applications
- Commercial CCTV installations
- Industrial and warehouse surveillance systems
- Retail and office security camera systems
- Residential security camera installations
- High-ceiling turret camera installations
- Indoor and sheltered outdoor surveillance
Environmental Benefits
- Aluminium construction is durable and recyclable at end of service life
- Integrated mounting and junction-box functions reduce the need for additional hardware and installation materials
- Durable powder-coated construction can extend service life and reduce replacement waste
Warranty Information
Digital Watchdog documentation specifies a 1-year manufacturer warranty. Ness’s general warranty policy states 3 years from date of purchase for Ness manufactured or supplied products unless otherwise specified; confirm the applicable warranty at purchase.
Available Now
Available through Ness Corporation and authorised Australian distributors.
