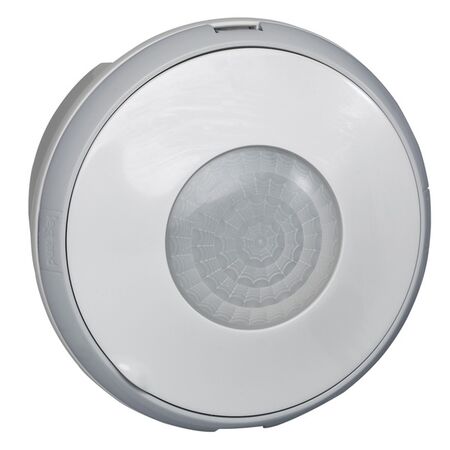

Ceiling Mounted PIR Sensor | 8-20m Range | IP55 Rated | 240V by Legrand
Ceiling mounted PIR sensor with 8-20m detection range and IP55 rating—ideal for outdoor and damp areas. Built for high ceilings, with override functionality for efficient lighting control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sensor for outdoor and damp areas - ceiling mounted - ideal for high ceiling areas PIR occupancy all load 3 wire with override IP55 240V a.c. 8-20m DIA 5-1275lx 5s-59mn td
Brand: Legrand
SKU: 48932
Alternatively Known As: PIR Sensor, Ceiling Mounted Sensor, Outdoor Sensor
Technical Specifications
- Voltage: 240V a.c.
- Detection range: 8-20 meters.
- Light level: 5-1275lx.
- Time delay: 5 seconds to 59 minutes.
- IP Rating: IP55.
- 3 wire system.
- Dimensions (H x L x W): 150mm x 120mm x 120mm
- Weight: 1.5 kg
Key Features
- PIR occupancy sensor for automatic lighting control.
- Designed for outdoor and damp environments.
- Ceiling mounted with a detection range of 8-20 meters.
- Override functionality available.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper functionality and compliance with electrical standards.
Applications
- Outdoor areas
- Damp areas
- High ceiling locations
Standards & Compliance
- Complies with AS/NZS 60669 for lighting control devices.
Environmental Benefits
- Reduces energy consumption by ensuring lights are only on when needed.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Legrand Ceiling Mounted PIR Sensor for Outdoor and Damp Areas is available now for immediate purchase. Ideal for high ceiling locations requiring occupancy detection.
