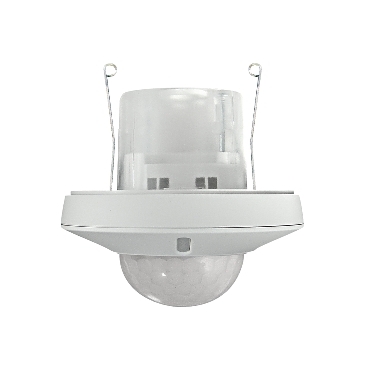

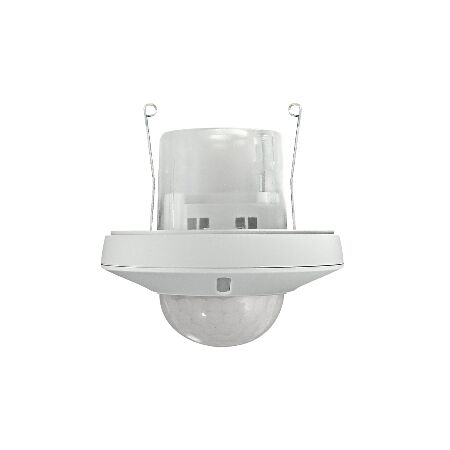

Ceiling Sensor Long Range | PIR Motion Detection | 18m Detection Range | Adjustable Sensitivity | @1 | by Clipsal
The Ceiling Sensor Long Range is designed for efficient motion detection with a passive infrared (PIR) technology, covering an impressive 18m diameter. Perfect for both commercial and residential applications, this ceiling-mounted sensor offers adjustable sensitivity and time delay, ensuring lights are only activated when needed. Ideal for offices, hallways, and public spaces, it promotes energy savings and supports automation for effective building management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ceiling Sensor Long Range | PIR Motion Detection | 18m Detection Range | Adjustable Sensitivity | @1 | by Clipsal
Brand: Clipsal
SKU: CLI752IR2RC
Alternatively Known As: Ceiling PIR Sensor, Clipsal Motion Detector, Long Range Ceiling Sensor, Clipsal 752IR2RC, PIR Ceiling Sensor
Technical Specifications
- Detection Technology: Passive Infrared (PIR)
- Detection Range: Up to 18m diameter (long range)
- Mounting: Ceiling
- Power Supply: 230-240V AC, 50Hz
- Load Capacity: 2000W incandescent, 1000W fluorescent, 500W LED
- Adjustable Time Delay: 10 seconds to 20 minutes
- Adjustable Sensitivity: Yes
- IP Rating: IP20 (indoor use)
- Operating Temperature: 0°C to 50°C
- Dimensions (H x L x W): 50mm x 110mm x 110mm
- Weight: 0.2 kg
Key Features
- Long range passive infrared (PIR) motion detection
- Ceiling mount design for wide area coverage
- Automatic lighting control for energy savings
- Adjustable detection sensitivity and time delay
- Suitable for use with lighting and automation systems
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with local wiring rules.
Applications
- Commercial buildings: offices, corridors, meeting rooms
- Residential: hallways, garages, large living spaces
- Public spaces: schools, hospitals, libraries
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces energy consumption by ensuring lights are only on when needed
- Supports automation for efficient building management
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Clipsal 752IR2RC Ceiling Sensor Long Range PIR Movement Detector is available for immediate purchase. Ideal for commercial and residential applications requiring reliable, automated lighting control.
