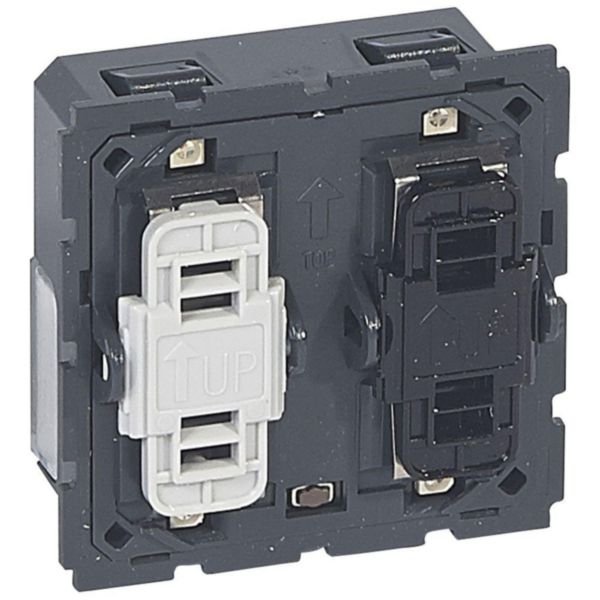

Céliane 2 Module Flush Mounted Control | Reduced Thickness | 3 Pushbuttons | IP20 Rated | @EA of 1 | by Legrand
The Céliane 2 Module Flush Mounted Control is designed for smart home shutter management, featuring a sleek, reduced thickness and three pushbuttons for easy operation. Ideal for residential and commercial applications, this control is compatible with advanced actuators and includes LED indication for enhanced functionality. Programmable and voice command-enabled, it integrates seamlessly with your smart home system.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Céliane 2 Module Flush Mounted Control | Reduced Thickness | 3 Pushbuttons | IP20 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 067558
Alternatively Known As: Legrand Céliane Shutter Control, 2 Module Flush Control, 3 Button Shutter Switch
Technical Specifications
- Only suitable for operation with advanced actuators H4661M2, LN4661M2, 0 675 57, and F401
- 2 DIN modules
- Rated voltage: 27 V d.c.
- Rated current: 0.007 A
- Bus system: Other (non-KNX)
- Mounting method: Flush-mounted
- Number of actuation points: 1
- Number of buttons: 3
- LED indication: Yes
- Material: Plastic
- Surface protection: Untreated
- Colour: Similar to RAL 9011
- Degree of protection: IP20
- Minimum depth of built-in installation box: 55 mm
- Operating temperature: 0-40 °C
- Storage temperature: -10-70 °C
- Standby consumption: 7 mA
- Terminals capacity: 0.34-2.5 mm²
- Cable nature for connection: Flexible or rigid
- Operating method: SCS
- With voice command: Yes
- Programmable: Yes
- Interoperable connection protocol: Yes
- Connectable by Internet box: Yes
- Product use function: Shutter management
- Dimensions (H x L x W): 45mm x 24mm x 45mm
- Weight: 0.1 kg
Key Features
- Flush-mounted design with reduced thickness
- 3 pushbuttons for shutter control
- Compatible only with advanced actuators H4661M2, LN4661M2, 0 675 57, and F401
- Rated voltage 27 V d.c. and current 0.007 A
- With LED indication
- Bus connection enabled
- Programmable and supports voice command
- Connectable via Internet box
- IP20 degree of protection
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper integration with compatible actuators and compliance with electrical standards.
Applications
- Smart home shutter management
- Residential and commercial rolling shutter control
- Integration with advanced actuators for shutter automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Programmable control reduces unnecessary energy consumption by optimizing shutter operation
- Supports smart home integration for energy-efficient building management
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Céliane 2 Module Flush Mounted Control with 3 Pushbuttons is available for immediate purchase, ideal for smart home shutter control applications.
