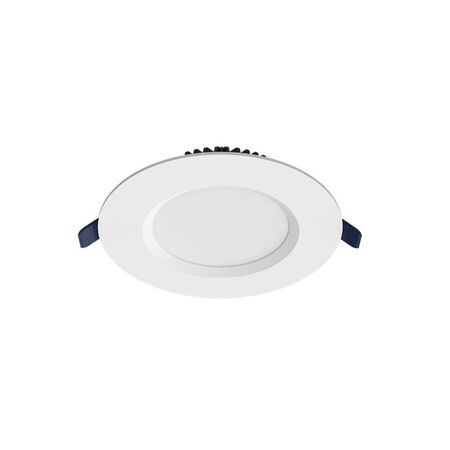

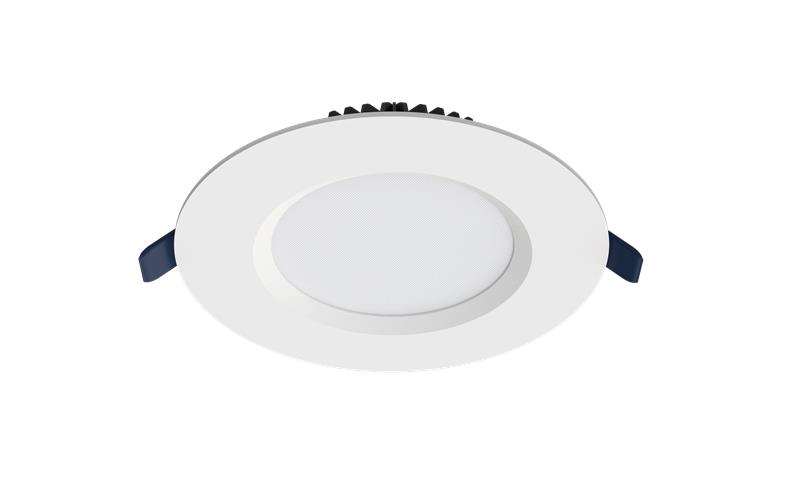

'Centauri 230mm Shoplighter Tri-Colour 30W DALI White Haneco'

BRAND: Haneco
SKU: CENT230R-HDALI
$254.90 List price: $339.80
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Centauri 230mm shoplighter features tri-colour CCT, 30W 700mA driver and DALI power switch dimming. Ideal for retail display lighting.'

Alternatively Known As: Haneco Centauri CENT230R-HDALI, 230mm commercial downlight, DALI LED shoplight

Technical Specifications
  • Product Code: CENT230R-HDALI
  • SAP Code: 7000302
  • Rated Power: 30W
  • Dimming: DALI dimmable power-switchable driver
  • Colour Temperature: 3000K / 4000K / 5000K tri-colour selectable
  • Lumen Output: Approximately 3040 / 3130 / 3090 lm
  • Efficacy: Approximately 101 / 104 / 103 lm/W
  • Input Voltage: 220–240V AC, 50/60Hz
  • Power Factor: Greater than 0.9
  • Beam Angle: 100°
  • Colour Rendering: CRI greater than 80
  • Housing: Diecast aluminium
  • Diffuser: Opal polycarbonate
  • Trim Colour: White, RAL9003
  • Ingress Protection: IP44 front and body
  • Insulation Class: Class II
  • IC Rating: IC-4
  • Rated Life: Greater than 50,000 hours at Ta 25°C
  • Cut-out Size: 185–215mm
  • Installation Type: Recessed
  • Operating Temperature: -20°C to 45°C
  • Dimensions (H x L x W): 35mm x 230mm x 230mm
  • Weight: 1.2 kg
Key Features
  • Tri-colour CCT selection from 3000K, 4000K and 5000K
  • DALI dimmable power-switchable 30W driver
  • 230mm ultra-low-profile commercial shoplighter design
  • 100° beam angle for broad retail and commercial illumination
  • White diecast aluminium housing with opal polycarbonate diffuser
  • IP44 protection from the front and body
  • IC-4 rated for covered and abutted ceiling installations
  • Remote driver supplied for shallow-ceiling applications
  • Suitable for retail, hospitality and other commercial interiors
Professional Installation Requirements
  • Installation and connection to mains power should be performed by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's installation instructions and applicable DALI wiring requirements.
Applications
  • Retail shop and display lighting
  • Shopping centres and commercial premises
  • Hospitality venues, cafés and restaurants
  • Reception areas, foyers and lobbies
  • Commercial interior refurbishment projects
Standards & Compliance
  • AS/NZS 60598 series – applicable safety and construction requirements for general lighting luminaires
  • AS/NZS 62386 series – applicable DALI digital lighting control interface requirements
Environmental Benefits
  • LED technology provides lower energy consumption than equivalent conventional lighting sources
  • DALI dimming and power switching can reduce lighting energy use when output is matched to occupancy and daylight conditions
  • Greater than 50,000-hour rated life can reduce replacement frequency and associated waste
  • Aluminium housing is recyclable at end of product life
  • Long-life LED construction supports reduced maintenance and material consumption
Warranty Information

5-year warranty as specified for the Centauri product range, subject to Haneco warranty terms and installation by a licensed electrician.

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.
