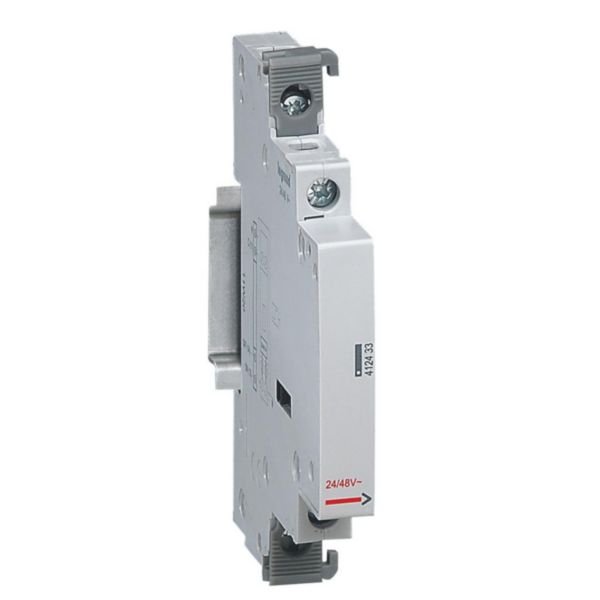

Centralized Control Auxiliary for Legrand Latching Relay | 24V~ & 48V~ Compatible | Compact Design | @Each of 1 | by Legrand
The Centralized Control Auxiliary for Legrand latching relay is designed for 24V~ and 48V~ systems, providing remote drive functionality. With a compact design of only 0.5 modular spacings, it’s perfect for residential and small commercial electrical panels, ensuring efficient control of latching relays. Ideal for integration with Legrand CX³ systems, this module simplifies installation and enhances system performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Centralized Control Auxiliary for Legrand Latching Relay | 24V~ & 48V~ Compatible | Compact Design | @Each of 1 | by Legrand
Brand: Legrand
SKU: 412433
Alternatively Known As: Control Auxiliary Module for Latching Relay, Remote Drive Auxiliary for CX³ Relay, Legrand Latching Relay Control Accessory
Technical Specifications
- Device fitting: Contactor/relay
- Function: Remote drive
- Width: 0.5 modular spacings
- Rated voltage: 48 V AC
- Suitable for max. number of poles main contact unit: 4
- Suitable for max. current main contact unit: 16 A
- No auto test for earth leakage function
- Dimensions (H x L x W): 80mm x 60mm x 9mm
- Weight: 0.1 kg
Key Features
- Easy mechanical association on the left side of the latching relay without tools
- Compact design, only 0.5 module wide
- Maximum of one control auxiliary per latching relay
- Can add a signalling auxiliary on the left side of the control auxiliary
- Designed for 24V~ and 48V~ standard pulse operated latching relays
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with installation rules to avoid risks of electric shock or fire.
Applications
- Residential and small commercial electrical panels
- Control systems requiring remote drive of latching relays
- Integration with Legrand CX³ latching relay systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Compact design reduces material usage
- Supports energy-efficient control of electrical circuits
Warranty Information
Warranty provided as per Legrand standard terms and conditions. Installation by qualified personnel recommended to maintain warranty validity.
Available Now
The Legrand Centralized Control Auxiliary for 24V~ and 48V~ standard pulse operated latching relay CX³ is available for immediate purchase, ideal for residential and small commercial panel control applications.
