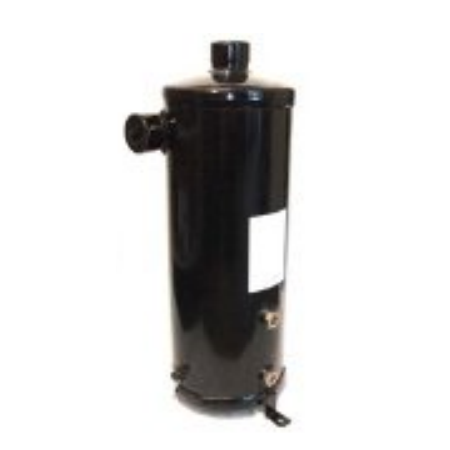

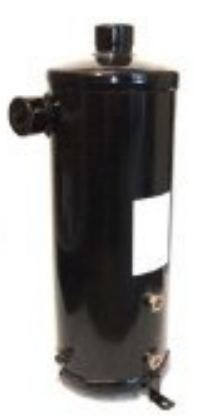

Centrifugal Oil Separator/Reservoir | Two-Stage Stainless Steel Membranes | Anti-Corrosion Finish | by Aspen Pumps
Centrifugal Oil Separator/Reservoir designed for industrial refrigeration and HVAC systems, featuring two-stage stainless steel oil separation membranes and a separate oil storage compartment for optimal de-aeration and cooling. Built for efficiency, it minimizes pressure drop and enhances system performance, making it ideal for commercial and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Centrifugal Oil Separator/Reservoir | Two-Stage Stainless Steel Membranes | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 307-COS6-22
Alternatively Known As: Oil Separator Reservoir, Centrifugal Oil Separator Tank, Refrigeration Oil Separator
Technical Specifications
- Connection: 1 3/8 inch ID
- Height: 850 mm
- Diameter: 152 mm
- Maximum CFM: 12
- Oil Charge Capacity: 5.6 L
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 4350 kPa
- Dimensions (H x L x W): 850mm x 152mm x 152mm
- Weight: 15 kg
Key Features
- Two stage stainless steel oil separation membranes
- Separate oil storage compartment for de-aeration and cooling
- Anti-corrosion powder coat finish with solid copper connections
- Minimal pressure drop to improve plant efficiency
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with pressure vessel and refrigeration system standards to ensure safety and compliance.
Applications
- Industrial refrigeration systems
- HVAC systems requiring oil separation
- Commercial and industrial pressure vessel applications
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigeration systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Improves system efficiency by reducing oil contamination
- Helps reduce energy consumption by maintaining optimal system performance
- Durable construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps for specific terms.
Available Now
The Aspen Pumps SKY Centrifugal Oil Separator/Reservoir is available for immediate purchase, ideal for industrial refrigeration and HVAC applications.
