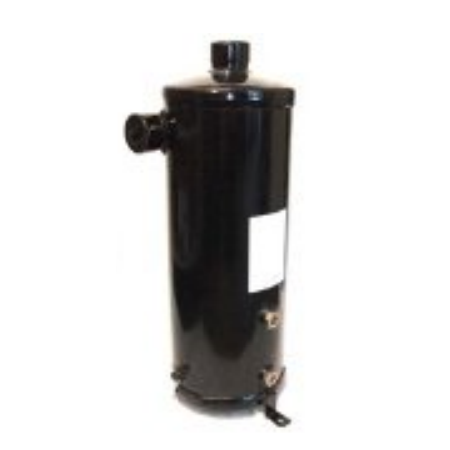

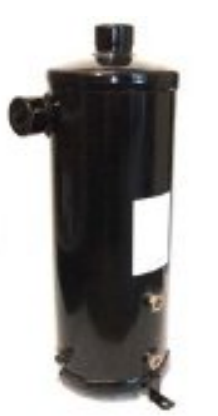

Centrifugal Oil Separator Reservoir | Two-Stage Stainless Steel Membranes | Anti-Corrosion Finish | by Aspen Pumps
The Centrifugal Oil Separator Reservoir is designed for industrial refrigeration and HVAC systems, featuring two-stage stainless steel oil separation membranes and a separate oil storage compartment for optimal de-aeration and cooling. With minimal pressure drop and solid copper connections, it enhances system efficiency and equipment longevity, making it a reliable choice for commercial and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Centrifugal Oil Separator Reservoir | Two-Stage Stainless Steel Membranes | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 307-COS6-26
Alternatively Known As: Oil Separator Reservoir, Centrifugal Oil Separator Tank, Refrigeration Oil Separator
Technical Specifications
- Connection: 1 5/8 inch ID
- Height: 850 mm
- Diameter: 152 mm
- Maximum CFM: 17
- Oil Charge Capacity: 5.6 L
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 4350 kPa
- Anti-corrosion powder coat finish
- Solid copper connections
- Dimensions (H x L x W): 850mm x 152mm x 152mm
- Weight: 12 kg
Key Features
- Minimal pressure drop to improve plant efficiency
- Two-stage stainless steel oil separation membranes
- Separate oil storage compartment for de-aeration and cooling
- Anti-corrosion powder coat finish with solid copper connections
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with pressure vessel and refrigeration system standards to ensure safety and compliance.
Applications
- Industrial refrigeration systems
- HVAC systems requiring oil separation
- Commercial and industrial pressure vessel applications
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems and pressure vessels
Environmental Benefits
- Improves system efficiency by reducing oil contamination
- Enhances equipment longevity, reducing waste and resource consumption
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps for specific warranty terms.
Available Now
The Aspen Pumps SKY Centrifugal Oil Separator/Reservoir is available for immediate purchase, ideal for industrial refrigeration and HVAC applications.
