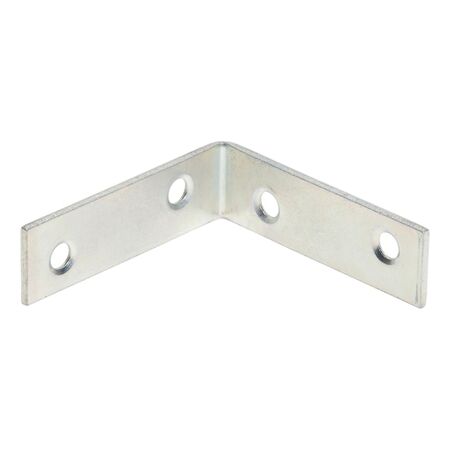

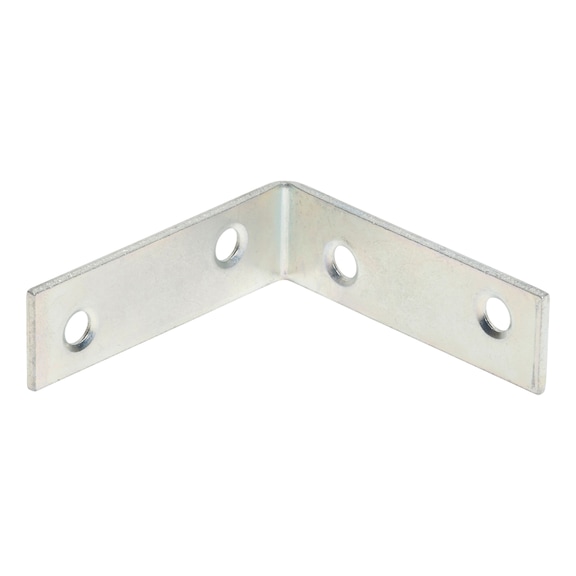

Chair and Box Angle Bracket | 40 x 40 mm | Zinc Plated Steel | Countersunk Holes | @Pack of 50 | by Wurth
The Chair and Box Angle Bracket is designed for non-structural wood-to-wood connections, featuring a robust 40 x 40 mm size and a zinc-plated steel surface for enhanced corrosion resistance. With countersunk bores for neat head connections and optimized mounting, this bracket is perfect for both residential and commercial projects, ensuring secure and compliant installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Chair and Box Angle Bracket | 40 x 40 mm | Zinc Plated Steel | Countersunk Holes | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 451340
Alternatively Known As: Angle bracket, corner bracket, wood bracket, metal bracket, steel angle bracket
Technical Specifications
- Limb length x limb length: 40 x 40 mm
- Width of side: 15 mm
- Thickness: 2 mm
- Number of holes in subcarrier + main carrier: 2 + 2 PCS
- Diameter of hole: 4.1 mm
- Material: Steel
- Surface: Zinc plated
- Weight: 15 g
- Dimensions (H x L x W): 40mm x 15mm x 40mm
- Weight: 0.015 kg
Key Features
- Countersunk bores on either side for neat head connections
- Holes countersunk and offset on either side for optimized mounting
- For arm lengths up to 75 mm: 2 bore holes
- For arm lengths from 90 mm: 3 bore holes
- Sheet steel galvanized on both sides (St37 + A2K)
Professional Installation Requirements
- Installation by a qualified tradesperson or carpenter is recommended to ensure secure and compliant wood connections.
Applications
- Non-structural wood to wood connections
- Utilisation classes 1 and 2 in line with EN 1995:2013
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanized steel surface provides corrosion resistance, extending product life and reducing waste.
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Chair and Box Angle Bracket CHR CABBRKT A2K 40 x 40mm 50 PCS is available now for immediate purchase. Ideal for non-structural wood to wood connections in residential and commercial building projects.
