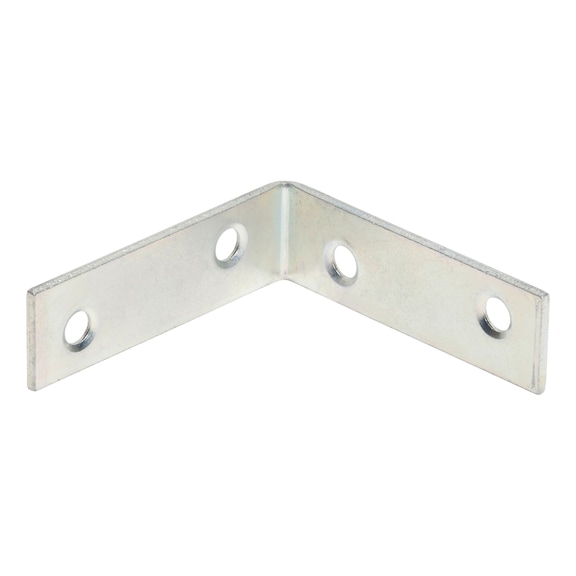

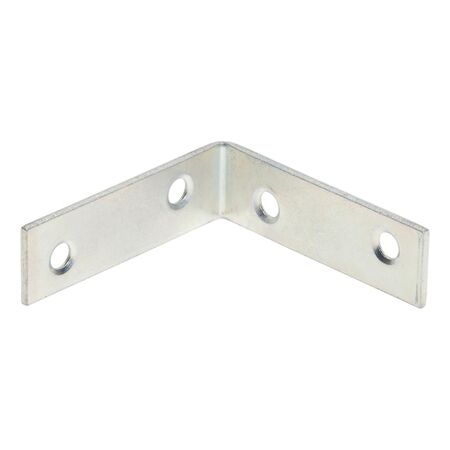

Chair and Box Angle Bracket | 50 x 50 mm | Zinc Plated Steel | 50 PCS | by Wurth
The Chair and Box Angle Bracket is perfect for non-structural wood-to-wood connections, featuring a robust 50 x 50 mm design and a zinc-plated steel surface for enhanced corrosion resistance. Ideal for both residential and commercial applications, these brackets ensure secure and compliant installations, making them a reliable choice for carpenters and tradespeople.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Chair and Box Angle Bracket | 50 x 50 mm | Zinc Plated Steel | 50 PCS | by Wurth
Brand: Wurth
SKU: 451350
Alternatively Known As: Angle bracket, corner bracket, wood bracket, metal bracket, galvanized steel bracket
Technical Specifications
- Limb length x limb length: 50 x 50 mm
- Width of side: 15 mm
- Thickness: 2 mm
- Number of holes in subcarrier + main carrier: 2 + 2 PCS
- Diameter of hole: 4.4 mm
- Material: Steel
- Surface: Zinc plated
- Weight: 19 g
- Dimensions (H x L x W): 50mm x 15mm x 50mm
- Weight: 0.019 kg
Key Features
- Ideal for non-structural wood to wood connections
- Countersunk bores on either side for neat head connections
- Holes countersunk and offset on either side for optimized mounting
- For arm lengths up to 75 mm: 2 bore holes
- For arm lengths from 90 mm: 3 bore holes
- Sheet steel galvanized on both sides (St37 + A2K)
Professional Installation Requirements
- Installation by a qualified tradesperson or carpenter is recommended to ensure secure and compliant wood connections.
Applications
- Non-structural wood to wood connections
- Utilisation classes 1 and 2 in line with EN 1995:2013
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanized steel surface provides corrosion resistance, extending product life and reducing waste.
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Chair and Box Angle Bracket CHR CABBRKT A2K 50 x 50mm 50 PCS is available now for immediate purchase. Ideal for non-structural wood to wood connections in residential and commercial construction.
