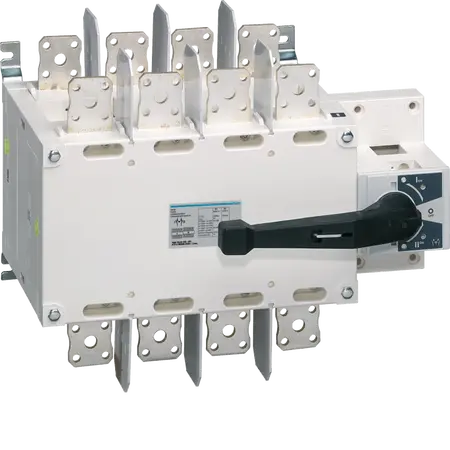

Change-over Switch 4P 1250A | 1000V Insulation | 64kA Withstand | IP00 by Hager
Change-over switch with 1250A rated current and 1000V insulation—ideal for industrial and commercial power management. Built for high power applications, with IP00 protection for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Change-over switch 4P 1250A
Brand: Hager
SKU: HI462
Alternatively Known As: 4 Pole Changeover Switch, Manual Transfer Switch, Load Break Switch
Technical Specifications
- Rated insulation voltage: 1000 V
- Rated impulse withstand voltage: 12000 V
- Rated short-time withstand current: 64 kA
- Rated conditional short-circuit current: 100 kA
- Rated operational power under 400 V AC: 822000 W
- Total power loss under IN: 373.20 W
- Operating temperature: -20 to 70 °C
- Frequency: 50 - 60 Hz
- Connection cross-section for rigid conductor: 4x 185 mm²
- Dimensions (H x L x W): 330mm x 375mm x 466mm
- Weight: 25 kg
Key Features
- Rated current of 1250 A for high power applications.
- IP00 ingress protection for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring reliable power management
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Commitment to reducing carbon footprint and improving environmental performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Hager Change-over Switch 4P 1250A is available now for immediate purchase. Ideal for industrial and commercial power management.
