Trade Discount 22%

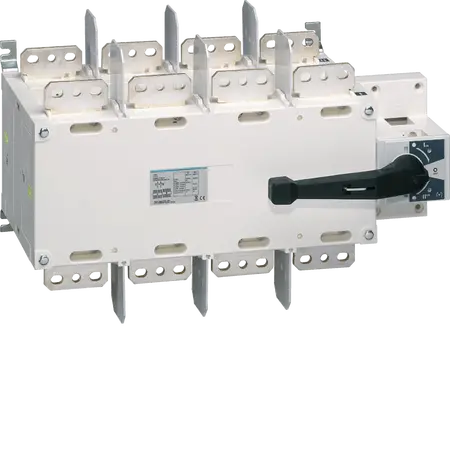

Change-over Switch 4P 1600A | 1000V Insulation | IP00 Indoor Use by Hager
Change-over switch with 1600A rated current and 1000V insulation—ideal for industrial and commercial power management. Built for high-capacity applications, with IP00 protection for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Change-over switch 4P 1600A
Brand: Hager
SKU: HI464
Alternatively Known As: 4 Pole Changeover Switch, Manual Transfer Switch 1600A
Technical Specifications
- Rated insulation voltage: 1000 V
- Rated impulse withstand voltage: 12000 V
- Rated short-time withstand current: 78 kA
- Rated conditional short-circuit current: 100 kA
- Rated operational power under 400 V AC: 1053000 W
- Total power loss under IN: 488 W
- Number of poles: 4
- Operating temperature: -20 to 70 °C
- Connection cross-section for rigid conductor: 6x 185 mm²
- Dimensions (H x L x W): 288mm x 375mm x 598mm
- Weight: 50 kg
Key Features
- Rated current of 1600 A for high-capacity applications.
- IP00 ingress protection for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for optimal safety and compliance.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring reliable power management
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Commitment to reducing carbon footprint and improving environmental performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Hager Change-over Switch 4P 1600A is available now for immediate purchase. Ideal for industrial and commercial power management applications.
